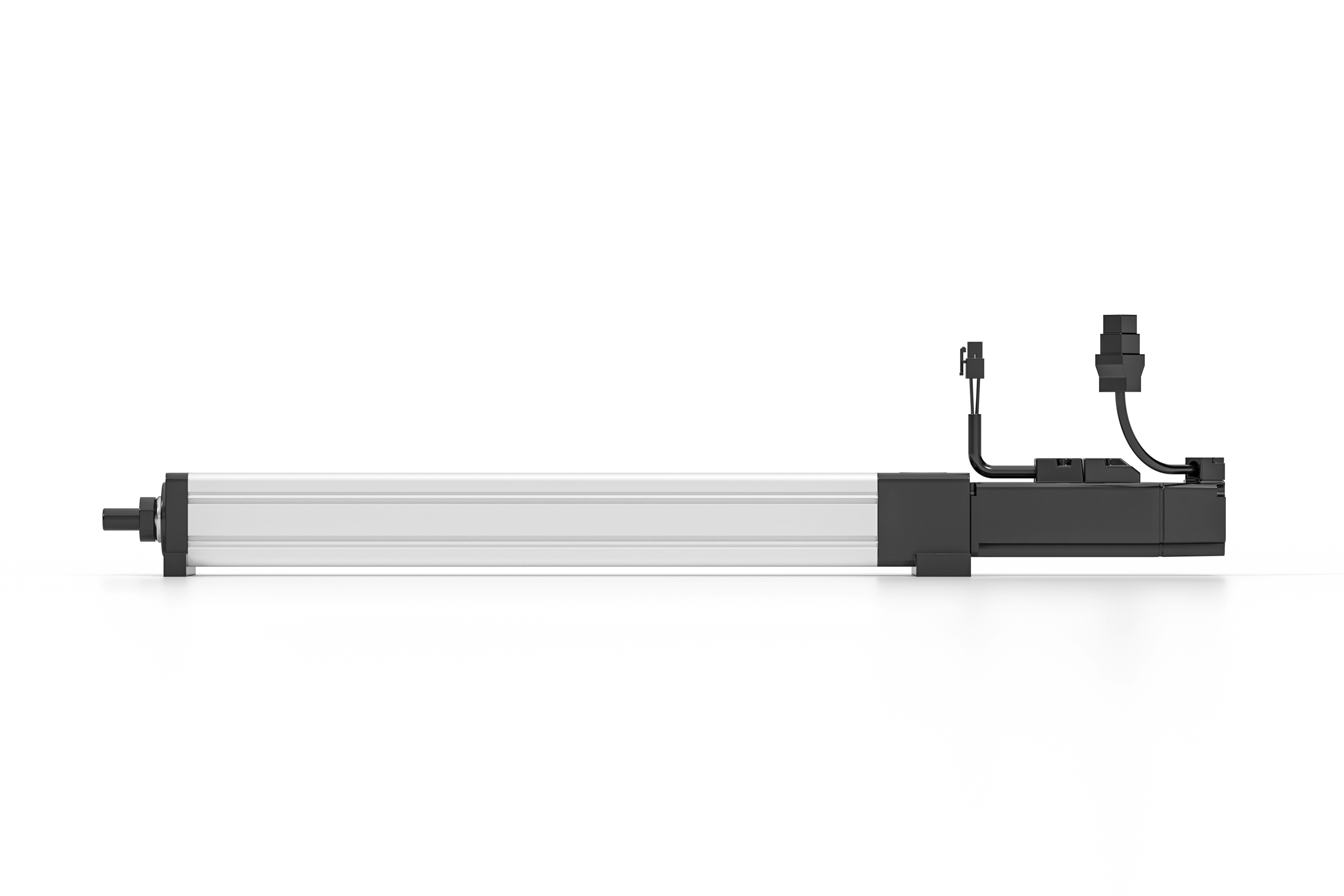

Micro Linear Actuator with Brushless DC Motor

Micro Linear Actuator with Brushless DC Motor – Precision, Efficiency, and Compact Design for Advanced Automation

This micro linear actuator powered by a brushless DC motor is engineered for high-precision motion control in demanding industrial, medical, and robotic applications. Combining advanced motor technology with a compact mechanical structure, it delivers smooth, accurate movement with minimal vibration and maximum reliability—ideal for environments where consistent performance and long-term durability are essential.

Key Features:

• Precision Motion Control: The integration of a brushless DC motor ensures ultra-fine positioning capabilities, enabling movements in small increments with exceptional repeatability. This makes the actuator suitable for delicate tasks such as optical alignment, lab automation, and surgical instrument adjustment.
• High Energy Efficiency: Unlike traditional brushed motors, this system consumes less power while generating significantly less heat, enhancing operational longevity and reducing maintenance needs. It supports continuous operation under moderate duty cycles without thermal overload.
• Compact and Lightweight Build: Designed for space-constrained setups, this unit integrates seamlessly into robotics, drones, wearable assistive devices, and portable diagnostic tools where size and weight matter most.
• Durable Construction: With a customizable ACME screw mechanism, internal limit switches, and an F-class insulation rating, the actuator offers robust performance across varying environmental conditions. Gearbox materials can be tailored to metal or plastic based on application requirements.

The device operates at noise levels below 65 dB, making it ideal for sensitive settings like research labs or healthcare environments where quiet operation is crucial. Its stroke range is customizable between 25 mm and 1000 mm, allowing flexibility for both short-travel precision adjustments and extended linear displacement tasks. With a rated lifetime of 500 million millimeters, this actuator provides reliable service over thousands of hours of use, even under frequent cycling.

Applications span multiple industries including:

• Medical Equipment: Used in imaging systems, patient positioning tables, and automated drug delivery mechanisms requiring silent, precise motion.
• Industrial Automation: Integrated into CNC machines, semiconductor handling systems, and assembly line fixtures for repeatable positioning accuracy.
• Research & Development: Employed in test benches, optical stages, and scientific instruments needing fine-tuned linear actuation.
• Robotics and Drones: Supports articulating arms, gimbal stabilization, and payload deployment mechanisms where lightweight and efficient motion control is critical.

Customer Feedback Highlights:

Users consistently praise the actuator’s seamless integration into existing designs due to its modular form factor and compatibility with internal drivers. Many note improved system stability compared to older brushed motor alternatives, especially in high-frequency operation scenarios. One engineer remarked, “This component transformed our lab automation setup—it’s quieter, more reliable, and easier to calibrate than anything we’ve used before.” Another user from a medical device manufacturer stated, “The precision here is unmatched; it allows us to achieve sub-millimeter accuracy consistently across thousands of cycles.”

Frequently Asked Questions:

What makes this actuator different from standard linear actuators? It uses a brushless DC motor instead of a brushed one, which eliminates carbon brush wear, reduces friction, and increases lifespan. This results in smoother motion, lower noise, and higher energy efficiency—key advantages for precision-sensitive applications.

Is it suitable for continuous operation? Yes, with a 20% duty cycle, it's designed for intermittent use over extended periods without overheating. For continuous applications, consider pairing it with external cooling solutions or adjusting the operating parameters accordingly.

Can I customize the stroke length or mounting options? Absolutely—the stroke can be tailored between 25 mm and 1000 mm, and gearbox material (metal or plastic) can be selected based on load, environment, and cost considerations.

This micro linear actuator represents a significant advancement in motion control technology, offering a balance of accuracy, durability, and adaptability that meets modern engineering demands across global markets.
