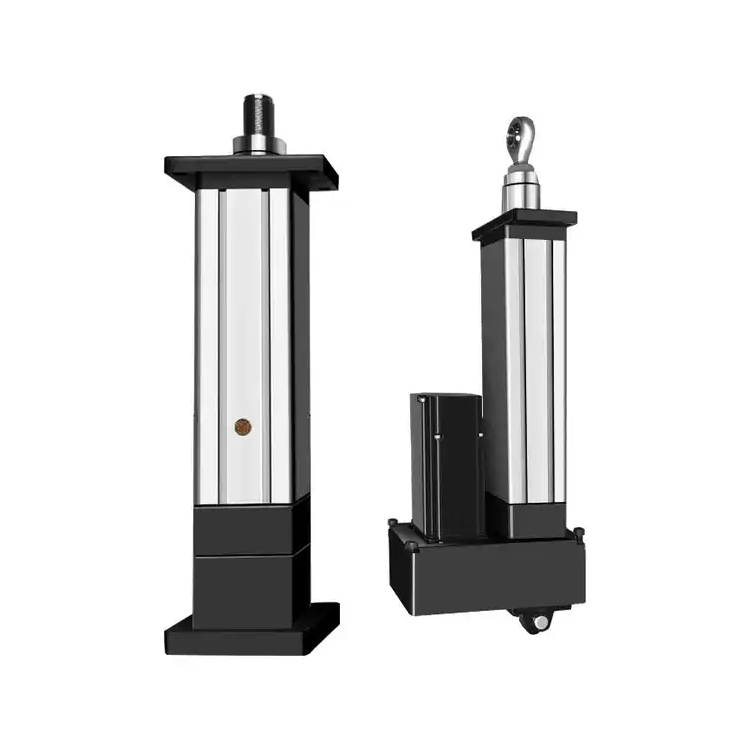

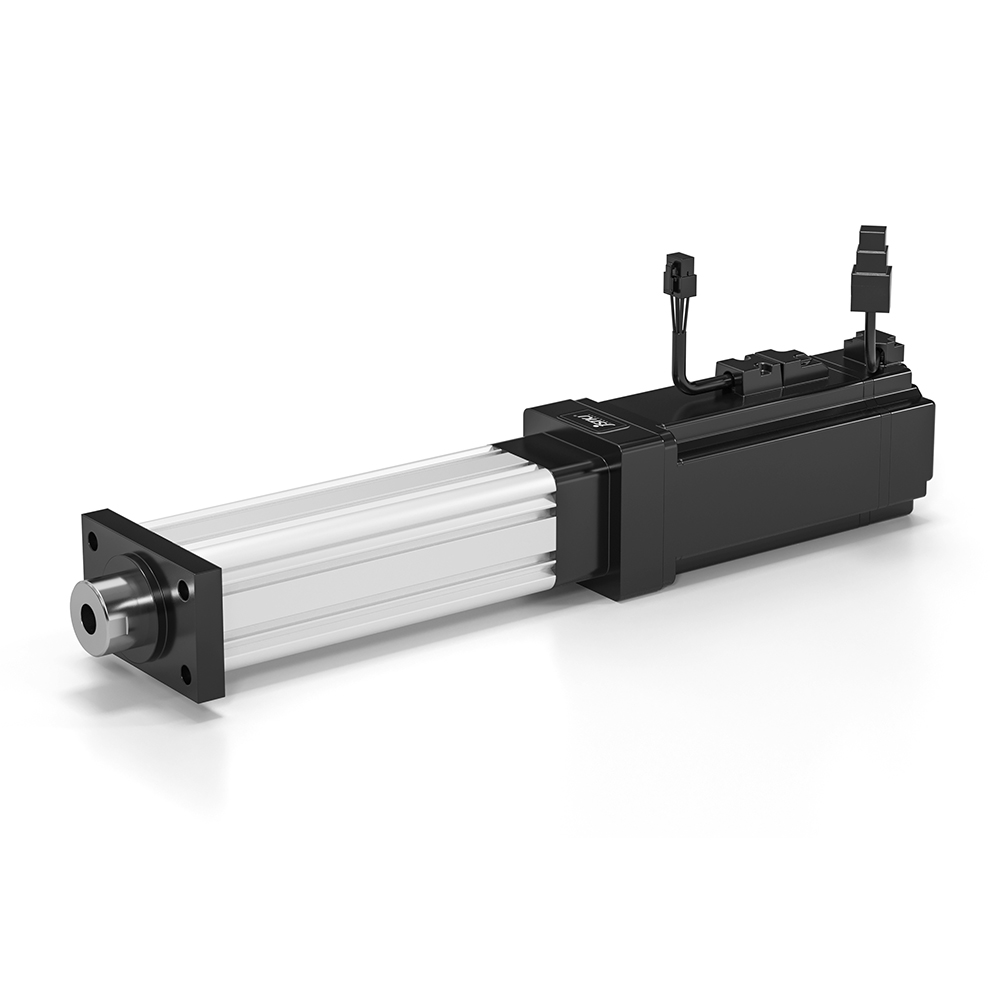

Linear Servo Electric Cylinder and Motor 220V

High-Precision Linear Servo Electric Cylinder with 220V Motor – Efficient, Compact, and Customizable for Industrial Automation

The linear servo electric cylinder equipped with a 220V power supply is a cutting-edge motion control solution engineered for precision engineering applications. Designed to deliver consistent performance in demanding environments, this actuator combines advanced servo technology with robust mechanical design to offer superior reliability, programmability, and energy efficiency. Whether used in manufacturing automation, material handling, or robotics, it stands out as a versatile alternative to traditional pneumatic and hydraulic systems.

This electric cylinder system excels in accuracy, speed, and adaptability—making it ideal for industries seeking high repeatability and minimal maintenance. With customizable stroke lengths, thrust capabilities, and integration options, it supports both standard and specialized industrial setups. Its modular construction allows for seamless installation across various platforms, from CNC machines to automated assembly lines.

• Precise Control: Achieves sub-millimeter positioning accuracy (±0.02mm) through closed-loop feedback mechanisms and digital servo drives.
• High Efficiency: Operates at up to 90% energy conversion efficiency, reducing operational costs compared to conventional actuators.
• Compact Integration: Lightweight body made from stainless steel ensures durability while minimizing footprint in tight spaces.
• Reliable Performance: Built to withstand harsh conditions including temperature fluctuations (-20°C to +80°C) and dust exposure (IP65 rated).
• Fast Response Time: Enables rapid adjustments during dynamic load changes, crucial for high-speed automation processes.
• Programmable Motion Profiles: Supports custom motion sequences via PLC or HMI interfaces, enhancing flexibility for complex tasks.

Key technical specifications include a maximum thrust range of 10N to 150kN (1kg to 15 tons), travel distances from 30mm to 15,000mm, and speeds between 0.1 m/s and 1 m/s. The motor options span from 400W to 3kW, allowing selection based on application intensity. Available in multiple bore sizes—from 40mm to 180mm—the cylinder can be tailored to fit specific structural constraints. Additionally, the unit features an IP65 protection rating, ensuring resistance to water jets and solid particle ingress, which makes it suitable for cleanroom, food processing, and outdoor environments alike.

Common use cases include robotic arms, pick-and-place systems, packaging machinery, testing equipment, and linear stages in semiconductor fabrication. It also serves as a core component in multi-axis motion platforms, where synchronized movement and fine-tuned force control are essential. For engineers looking to upgrade legacy systems, this electric cylinder offers plug-and-play compatibility with existing control architectures such as EtherCAT, Modbus TCP, or CANopen protocols.

Users have praised its smooth operation, low noise levels, and long service life under continuous duty cycles. Many note that the ability to adjust stroke length, speed, and force according to project needs significantly reduces downtime and increases productivity. One engineer remarked, “This actuator replaced our old pneumatic setup without reconfiguring the entire line—it’s more precise, quieter, and easier to maintain.” Another user highlighted the excellent customer support team, who helped customize the mounting configuration for a unique automation task.

Q: Can I integrate this cylinder into my existing PLC-controlled system? A: Yes, it supports common industrial communication standards like Modbus RTU/TCP, EtherCAT, and CANopen, enabling easy integration with most modern control systems.

Q: Is the motor compatible with different voltage inputs? A: While the base model operates on 220V AC, we offer variants for 110V, 380V, and DC input configurations upon request.

Q: How do I ensure optimal performance in extreme temperatures? A: The cylinder’s internal components are designed for stable operation between -20°C and +80°C. Additional thermal management solutions are available for specialized environments.

Q: What customization options are available beyond stroke and thrust? A: We provide bespoke solutions for mounting styles, encoder types, braking systems, and even custom software profiles tailored to your workflow requirements.

For global customers seeking a dependable, scalable, and future-proof motion solution, this linear servo electric cylinder delivers unmatched value—combining engineering excellence with practical adaptability across diverse industrial sectors.
