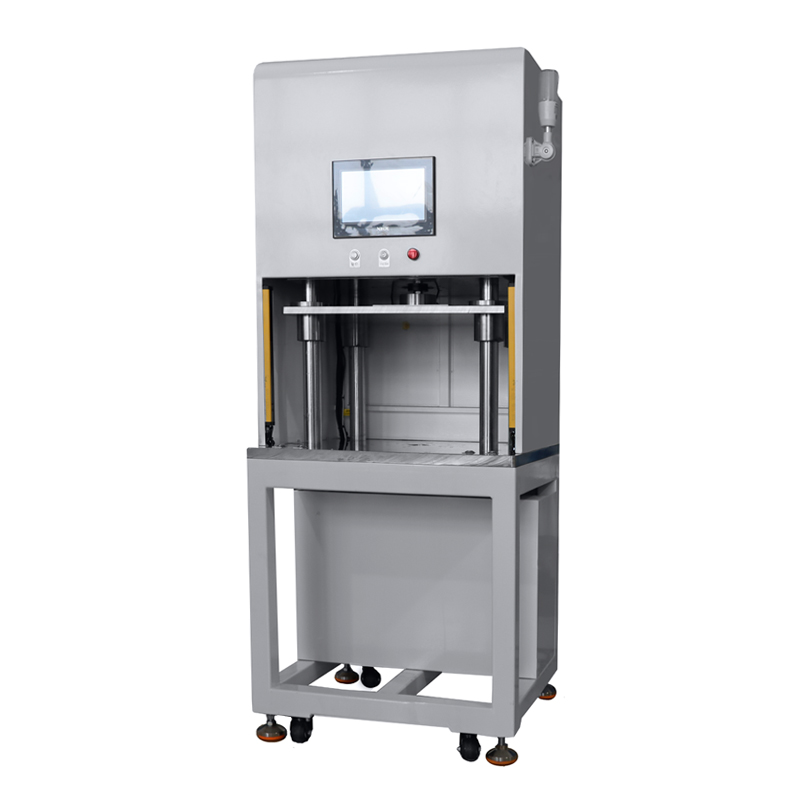

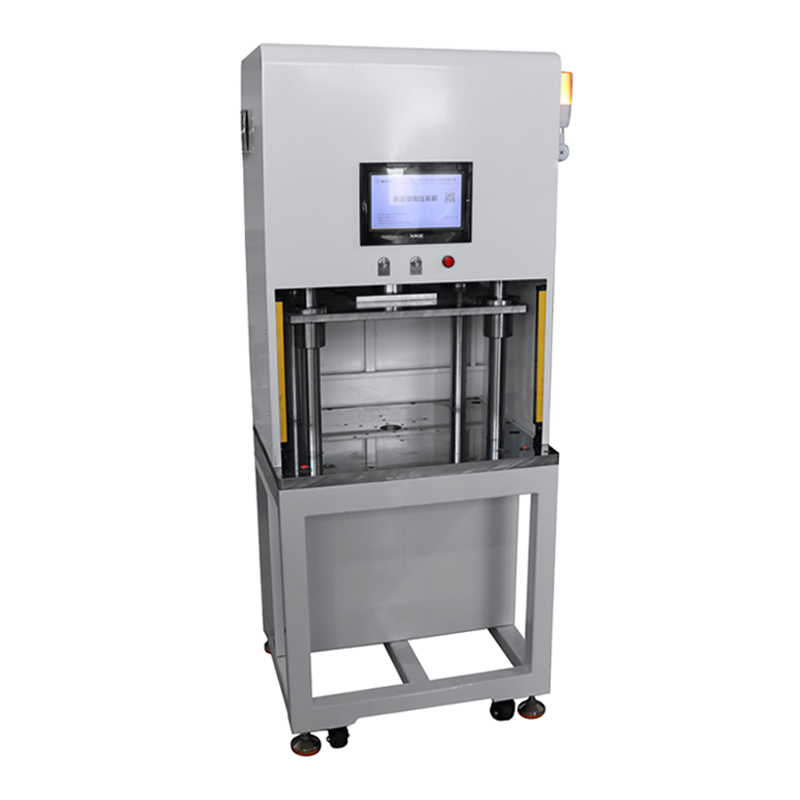

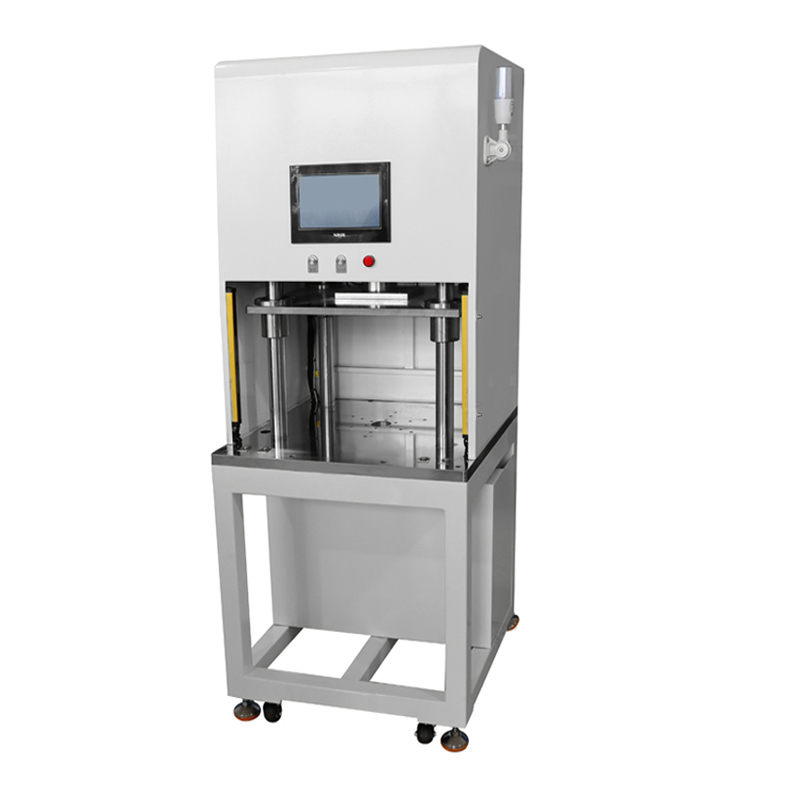

High-Precision Vertical Servo-Driven Hydraulic Press for Industrial Metalworking and Composite Manufacturing

Discover the advanced capabilities of our high-precision vertical servo-driven hydraulic press, engineered for superior performance in demanding industrial environments. Designed with cutting-edge servo technology and robust hydraulic systems, this machine delivers unmatched accuracy, power, and energy efficiency—making it an essential tool for modern manufacturing operations across automotive, aerospace, and composite material industries worldwide.

Key Features

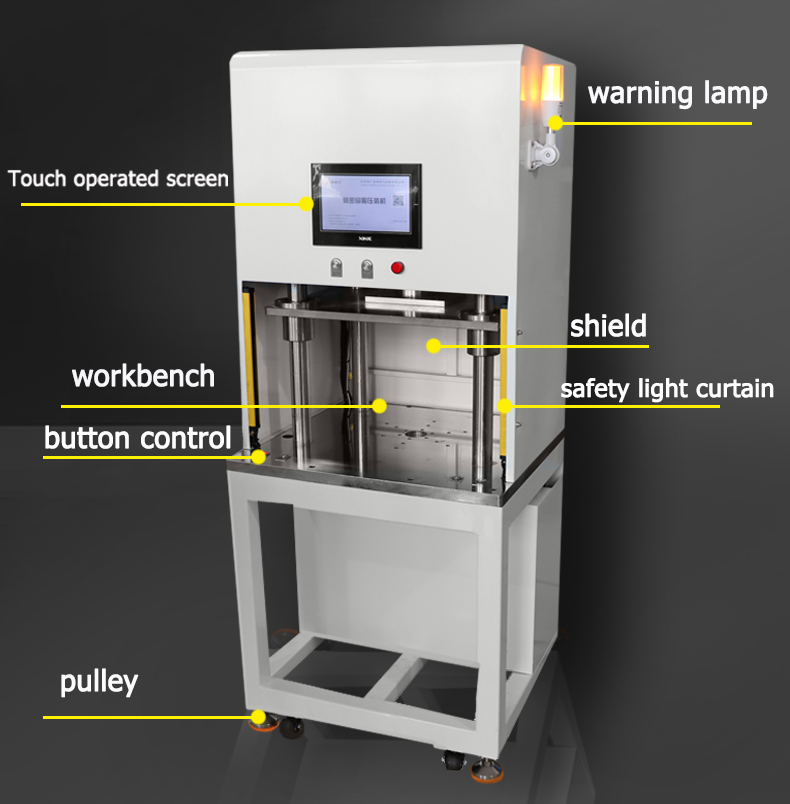

This precision hydraulic press combines intelligent motion control with high-force output to ensure consistent results in every operation. Its vertical orientation enhances stability, simplifies workpiece handling, and improves operator ergonomics. With programmable controls, users can customize pressing sequences, speeds, and pressures tailored to specific applications. The system's repositioning resolution of just 0.02 mm ensures micro-level accuracy, while the variable-speed servo drive reduces power consumption by up to 40% compared to traditional hydraulic presses—ideal for sustainable production practices.

Detailed Specifications

The product line includes models ranging from CHY300 (3-ton capacity) to CHY20T (20-ton capacity), each offering standardized stroke lengths of 200 mm and adjustable press speeds from 0 to 1000 mm/s depending on model. Voltage compatibility supports both single-phase 220V and three-phase 380V inputs, ensuring global adaptability. These machines are built for durability and ease of integration into automated production lines or standalone setups in small-to-medium workshops.

Industrial Applications

Primarily used in metal forming processes such as stamping, bending, and deep drawing, this press excels at producing complex components with tight tolerances required in the automotive sector—for engine blocks, transmission housings, and suspension elements. In composite manufacturing, it enables precise consolidation and curing of fiber-reinforced laminates under controlled pressure and temperature conditions, ensuring structural integrity and quality consistency. Additionally, it serves well in prototyping, repair shops, and R&D labs where repeatability and fine-tuned force application are critical.

User Feedback Highlights

Operators report significant improvements in process reliability and reduced scrap rates due to the press’s ability to maintain exact force profiles throughout the cycle. Maintenance teams appreciate the low noise levels and minimal hydraulic fluid leakage, thanks to sealed servo motor systems. Many users highlight the intuitive interface that allows non-specialist staff to configure basic tasks quickly, reducing training time and increasing productivity across diverse skill levels.

Frequently Asked Questions

Is this press suitable for small businesses? Yes—it offers scalable options from 3 to 20 tons, making it adaptable for startups and established manufacturers alike. Can it be integrated into existing automation systems? Absolutely; its programmable logic controller (PLC) supports standard industrial communication protocols like Modbus or EtherCAT. Does it require special electrical infrastructure? No—it operates on common voltages found in most industrial settings globally, including Europe, North America, and Southeast Asia. What makes it more efficient than older hydraulic presses? The servo-driven system dynamically adjusts energy use based on load, eliminating unnecessary idle power draw and lowering operational costs over time.
