Linear Guide with Cover for Single-Axis Manipulator

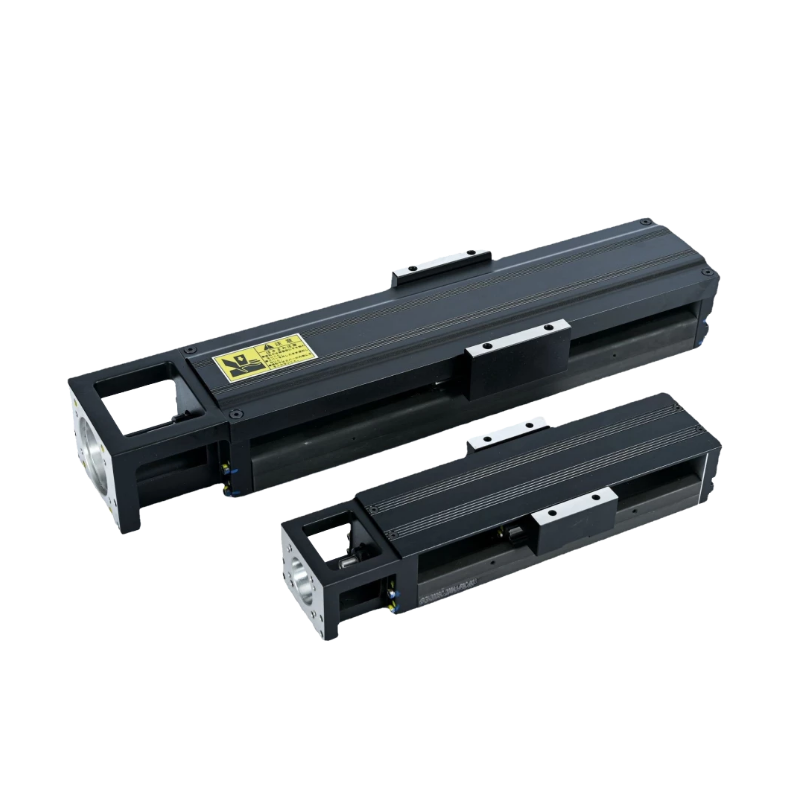

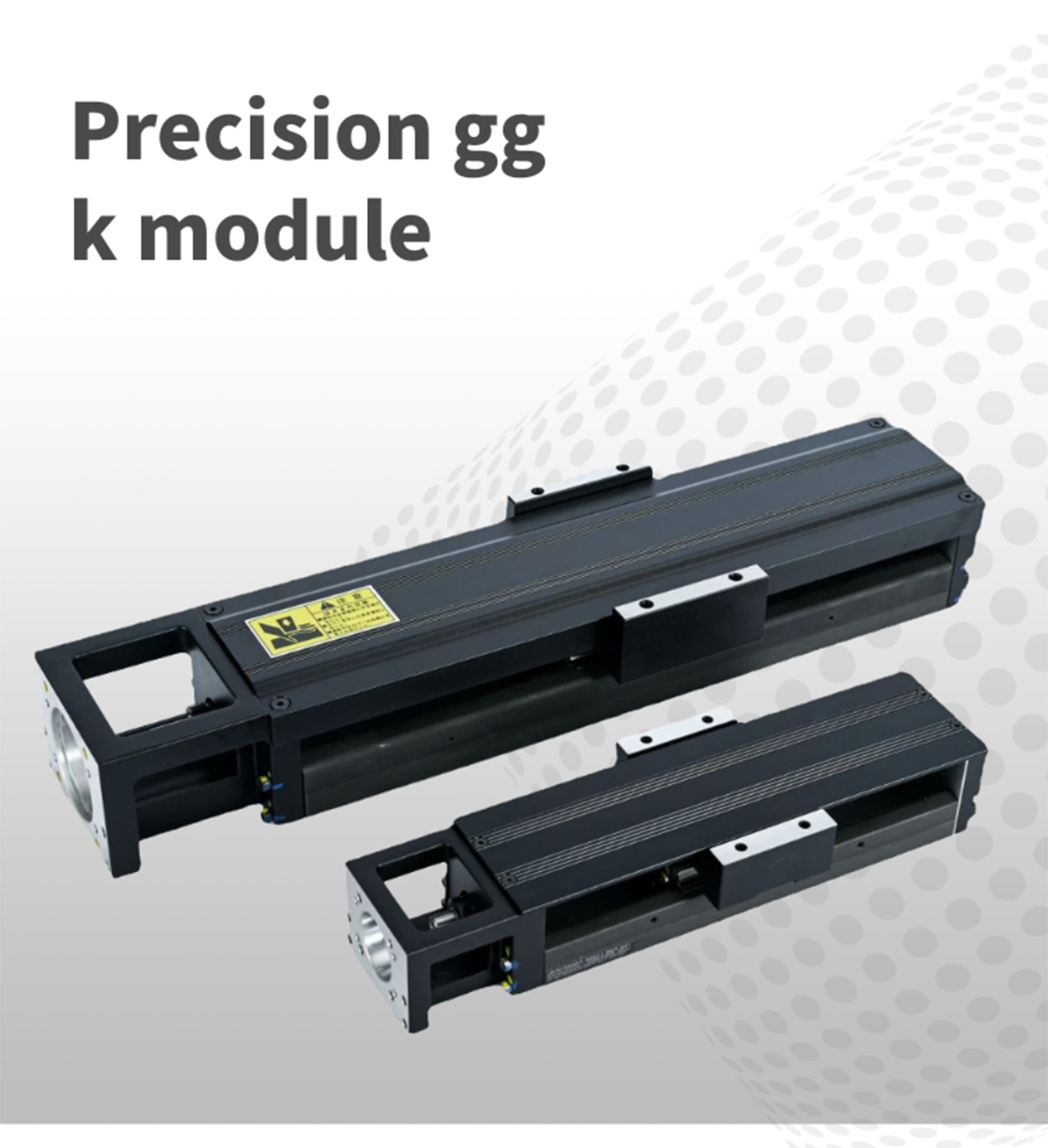

High-Precision Linear Guide with Protective Cover for Single-Axis Manipulators

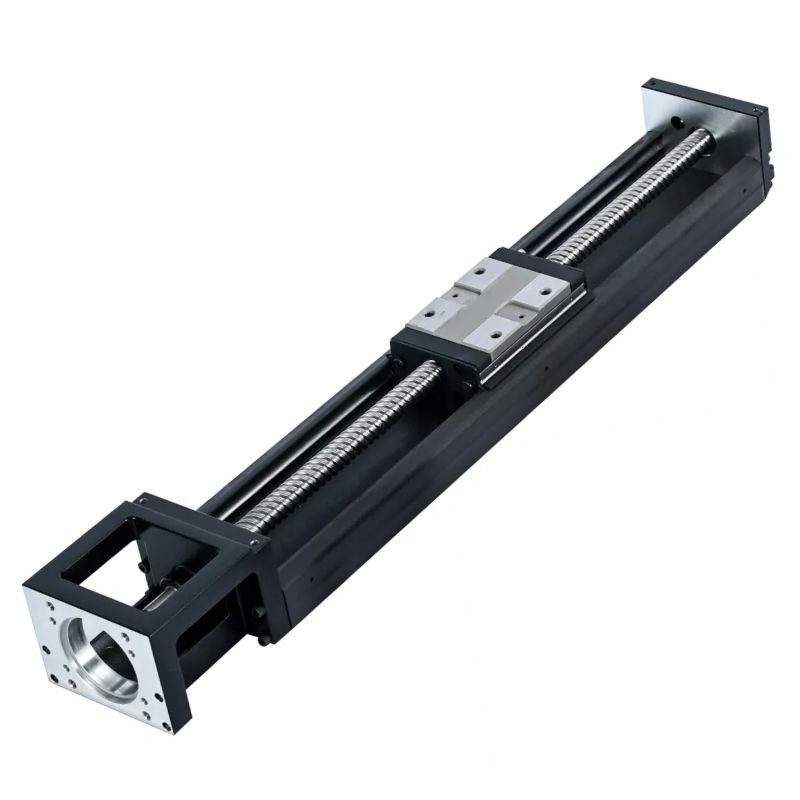

This advanced linear guide system is engineered for seamless motion control in industrial automation applications. Designed to deliver consistent performance under demanding conditions, it features a robust rail-and-carriage configuration that ensures accurate and repeatable movement along a single axis. The precision-engineered components are built from hardened steel or high-strength alloys, offering long-term durability and minimal wear even in continuous operation environments.

Key features include integrated rolling elements—such as ball bearings or cylindrical rollers—that reduce friction and enable ultra-smooth motion. A preloaded design minimizes backlash, enhancing positioning accuracy and stability. The protective cover, made from corrosion-resistant materials like aluminum or reinforced polymer, shields internal mechanisms from dust, moisture, and particulate contamination, significantly extending service life and maintaining optimal function over time. Ventilation ports and integrated wipers further improve environmental resistance by managing condensation and airflow, making this assembly ideal for harsh or variable operating conditions.

Installation is straightforward thanks to standardized mounting holes and compatibility with common robotic arms and linear actuator frames. Whether used in CNC machinery, pick-and-place systems, or automated assembly lines, the module offers plug-and-play integration without requiring specialized tools or complex setup procedures. Customization options are available for torque output, speed ratios, noise levels, and gear configurations, allowing engineers to tailor the unit to specific application needs while maintaining high efficiency—typically ranging between 94% and 98% depending on load and operational parameters.

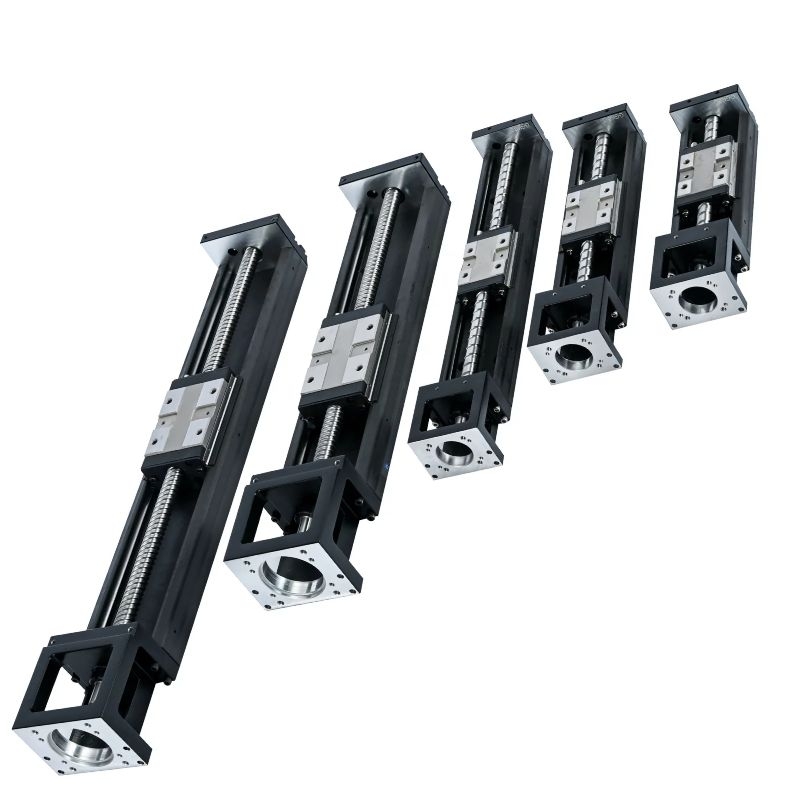

Commonly employed in manufacturing, packaging, semiconductor processing, and laboratory automation, this linear slide module excels in scenarios where reliability, repeatability, and low maintenance are critical. Its modular construction supports easy replacement and servicing, reducing downtime and increasing overall system uptime. Suitable for both small-scale production units and large-scale automated workcells, it represents a versatile solution for modern industrial automation challenges.

Users consistently praise its quiet operation, precise travel, and ease of integration into existing mechanical designs. Many report improved machine performance after upgrading from standard bushing-based guides to this roller-bearing version, particularly in applications involving frequent start-stop cycles or high-frequency positioning tasks.

Frequently Asked Questions:

Q: What makes this linear guide different from basic sliding rails? A: Unlike traditional bushings, this system uses rolling contact elements (balls or rollers) that drastically reduce friction and increase longevity. It also includes a sealed cover to protect against contaminants, which is often missing in budget alternatives.

Q: Can I customize the output speed or torque? A: Yes, customization is supported through OEM services. We offer tailored solutions based on your specific motor coupling, load requirements, and desired velocity profiles.

Q: Is the cover removable for cleaning or inspection? A: Absolutely—the cover is designed for quick removal using simple fasteners, enabling routine maintenance without disassembling the entire guide mechanism.

Q: How does the preloading feature improve accuracy? A: Preloading eliminates play between the carriage and rail by applying controlled internal pressure, ensuring zero backlash during directional changes—a crucial factor in high-precision applications such as laser cutting or micro-assembly.

Q: Where is this product manufactured? A: All units are produced in Taiwan, China, adhering to strict quality control standards and international certifications for mechanical components used in industrial automation systems.
