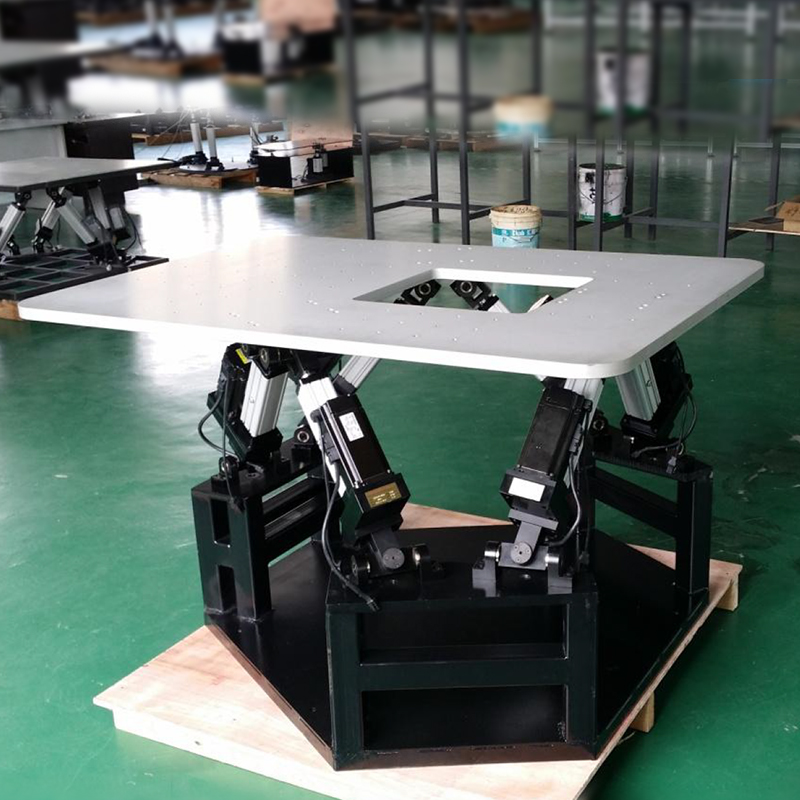

The DGR 6DOF Motion Platform is a high-precision, fully digital simulation system engineered for realistic multi-axis motion replication in diverse industrial and research applications. Designed with six electric cylinders and universal joints connecting the upper and lower platforms, this advanced rig enables seamless movement across all six degrees of freedom—X, Y, Z translational axes, plus pitch (α), roll (β), and yaw (γ)—to accurately mimic real-world dynamics such as vehicle vibrations, aircraft maneuvers, or seismic activity. This platform excels in performance, offering a wide payload capacity ranging from 5 kg to 20,000 kg, making it ideal for both lightweight prototyping and heavy-duty testing environments. Its precision engineering ensures that each axis operates within tight tolerances: ±0.05 mm positional accuracy for linear movements and ±0.01° angular resolution for rotational motions. With maximum speeds up to 500 mm/s and acceleration rates of 5 m/s², the system delivers responsive and lifelike motion profiles essential for immersive training simulators, aerospace R&D, and virtual reality integration. Key features include a closed-loop servo control architecture powered by HS servo drivers and an Mbox motion controller, ensuring smooth, stable operation even under dynamic load conditions. The modular design supports flexible integration into existing test setups, while the optimized transmission mechanism achieves system efficiency exceeding 85%. Built-in electromagnetic brake functionality provides fail-safe protection during unexpected power loss, enhancing operational safety—a critical factor in professional-grade simulation systems. The control electronics consist of an industrial-grade computer, electrical enclosure, and robust cabling, enabling reliable long-term use in demanding environments. Communication protocols like CAN bus and RS485 support MODBUS-based interaction, allowing easy connection to external monitoring systems or custom software interfaces. This makes the platform highly adaptable for OEMs developing motion-based training simulators, robotics developers seeking precise actuation, or engineers conducting vibration analysis on mechanical components. Common applications span flight simulators, automotive suspension testing, offshore platform motion studies, medical device validation, and educational laboratories focused on mechatronics and automation. Whether used for pilot training, structural fatigue testing, or human-machine interface research, the DGR 6DOF platform offers unmatched versatility and fidelity. Users praise its intuitive control interface, minimal maintenance requirements, and consistent repeatability over thousands of cycles. Many highlight how the combination of high-speed response and ultra-fine positioning enhances the realism of their simulations, leading to more accurate data collection and better decision-making in product development workflows. Frequently asked questions often revolve around compatibility with third-party controllers, scalability for multi-platform setups, and customization options for specific motion profiles. The system’s programmable I/O ports and configurable control logic allow tailored solutions for unique use cases without requiring hardware redesign. In summary, the DGR 6DOF motion simulator stands out as a premium solution for anyone needing precise, repeatable, and safe multi-axis motion simulation. It blends cutting-edge servo technology with intelligent system design, delivering results that align with global standards in engineering, education, and simulation technology.
Product Categories : Degrees Of Freedom Platform
