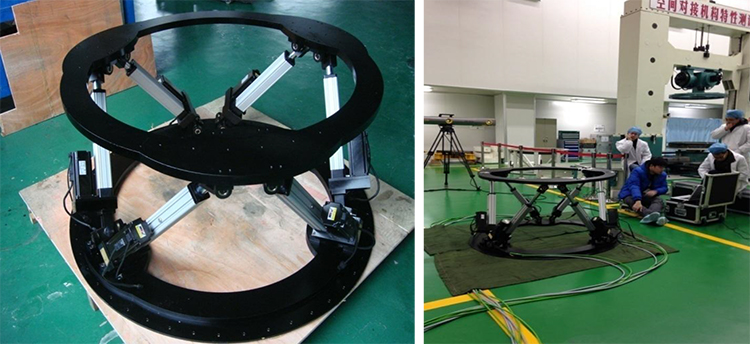

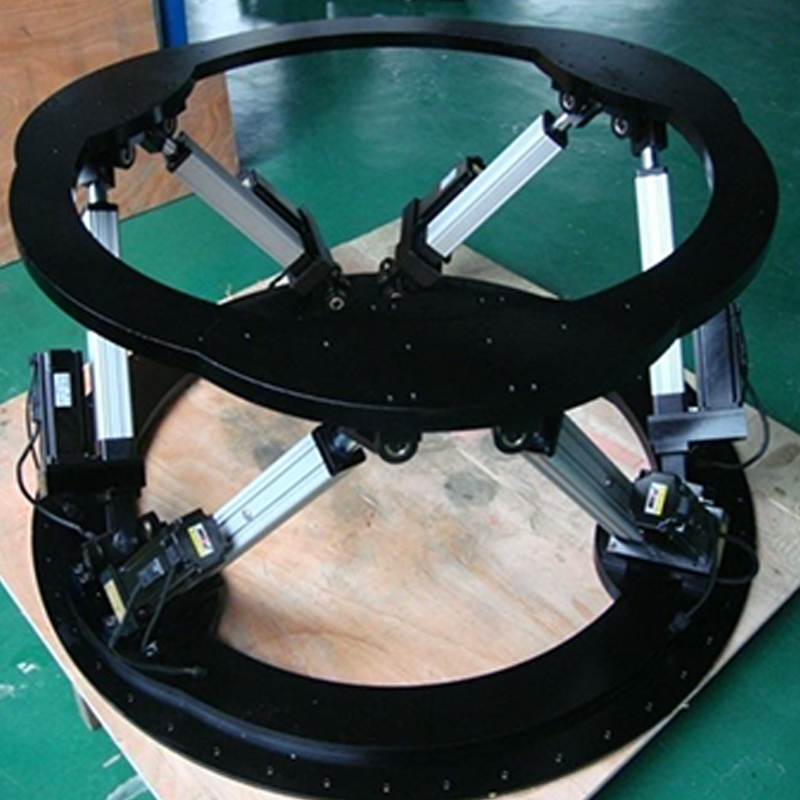

JST-LZYD-P019 Space Docking Simulator: Advanced 6DOF Motion Platform for Aerospace Research and Development The JST-LZYD-P019 Six-Degree-of-Freedom (6DOF) motion platform is a cutting-edge simulation system engineered specifically for space docking experiments, offering researchers an unprecedented level of fidelity in replicating microgravity conditions on Earth. Designed in close collaboration with leading aerospace institutions, this high-precision mechanical simulator enables accurate modeling of spacecraft rendezvous, attitude control, and docking maneuvers—critical processes that demand extreme accuracy and dynamic responsiveness. With its robust architecture and industry-leading performance metrics, the P-019 sets a new benchmark for ground-based space experiment platforms. What distinguishes the P-019 from conventional simulators is its ability to independently control all six degrees of freedom—three translational (X, Y, Z) and three rotational (pitch, roll, yaw)—while maintaining micron-level positioning precision and millisecond-scale reaction times. This ensures that every simulated movement mirrors real orbital dynamics, from subtle drifts caused by solar radiation pressure to rapid adjustments during final approach phases. The platform’s vibration frequency reaches up to 12Hz, significantly surpassing standard systems, allowing it to emulate high-frequency disturbances such as thruster firings or structural flexing in low-Earth orbit environments. Key technical advantages include: - Ultra-high repeatability: Positioning accuracy within 0.1° for angular movements and 0.03mm for linear displacements - High-speed actuation: Up to 500mm/s translation speeds and 20°/s angular velocities - Exceptional stability: Drift less than 0.00025mm over 12 hours of continuous operation - Wide operational bandwidth: System response from 0.0 Hz to 20 Hz, enabling comprehensive dynamic testing across multiple mission profiles This advanced hardware serves as a foundational tool for validating spacecraft docking mechanisms, refining autonomous guidance algorithms, and evaluating human-in-the-loop procedures under realistic conditions. By replacing costly and risky in-orbit trials with precise terrestrial simulations, the P-019 dramatically reduces development time and financial risk while accelerating innovation cycles in next-generation space vehicles. Its compact footprint and modular design make it ideal for integration into existing laboratory setups, supporting both academic research and industrial R&D programs focused on deep-space exploration, satellite servicing, and lunar/Martian landing systems. Ideal for use in aerospace engineering labs, university research centers, and defense technology organizations, the P-019 supports a wide range of applications including: - Testing robotic arm docking interfaces - Validating autonomous navigation software - Simulating emergency docking scenarios - Training astronauts in manual docking operations - Evaluating thermal and mechanical stress effects during contact events Users have reported significant improvements in experimental consistency and data reliability since adopting the platform. One researcher noted, “The repeatability and resolution allow us to detect subtle differences in control logic that would otherwise be masked in lower-fidelity systems.” Another highlighted how the system enabled early identification of resonance issues in a probe’s hinge mechanism—a discovery that saved months of redesign work. Common questions often revolve around setup complexity, compatibility with existing test rigs, and maintenance requirements. The platform features intuitive software integration via standard communication protocols, minimal calibration needs due to built-in self-monitoring sensors, and durable components designed for extended use in demanding lab environments. It operates efficiently at 4.5kW power consumption and can accommodate payloads up to 150kg, making it suitable for full-scale mockups of docking modules and small satellites. For engineers, scientists, and innovators working toward the future of space exploration, the JST-LZYD-P019 represents more than just a testbed—it's a catalyst for breakthroughs in autonomous docking, interplanetary logistics, and safe crewed missions beyond Earth’s orbit.
