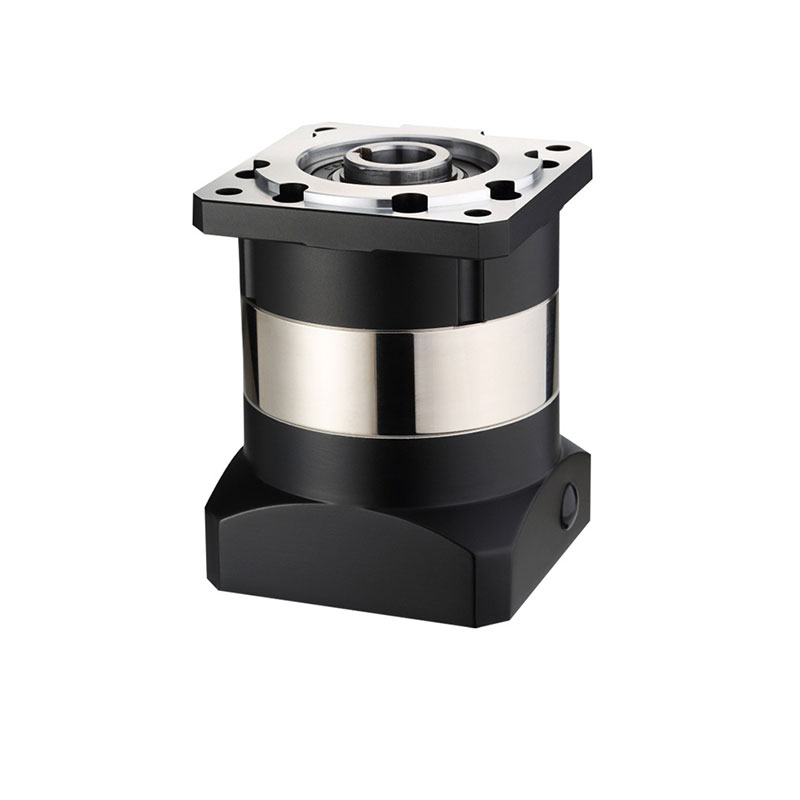

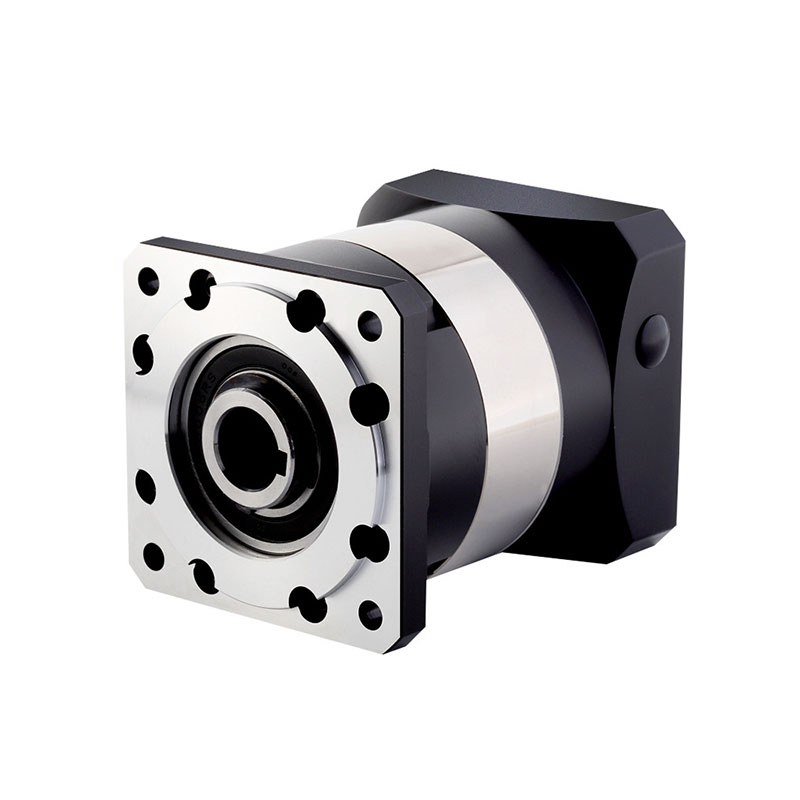

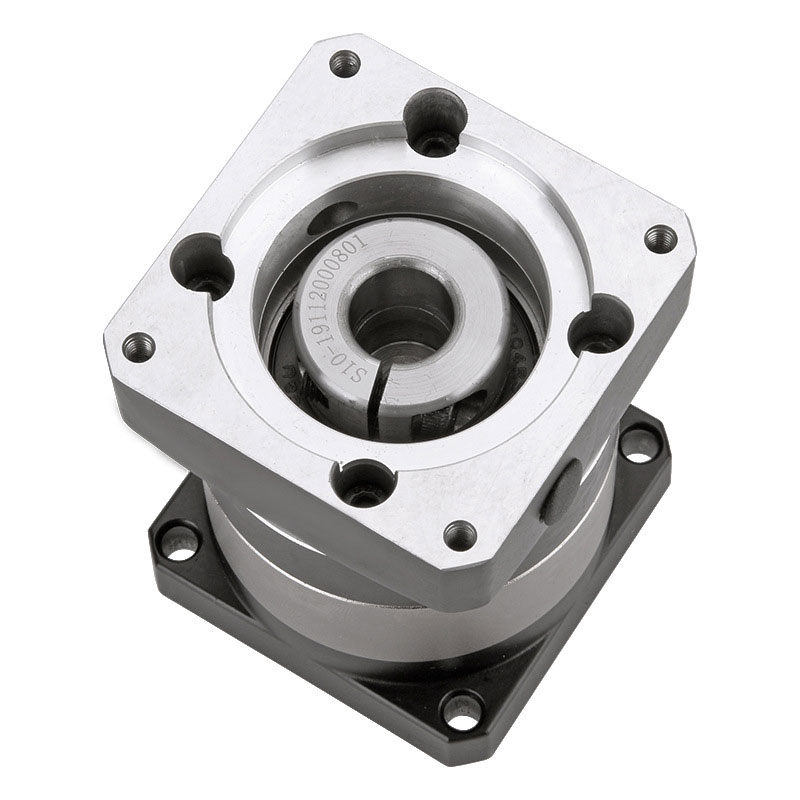

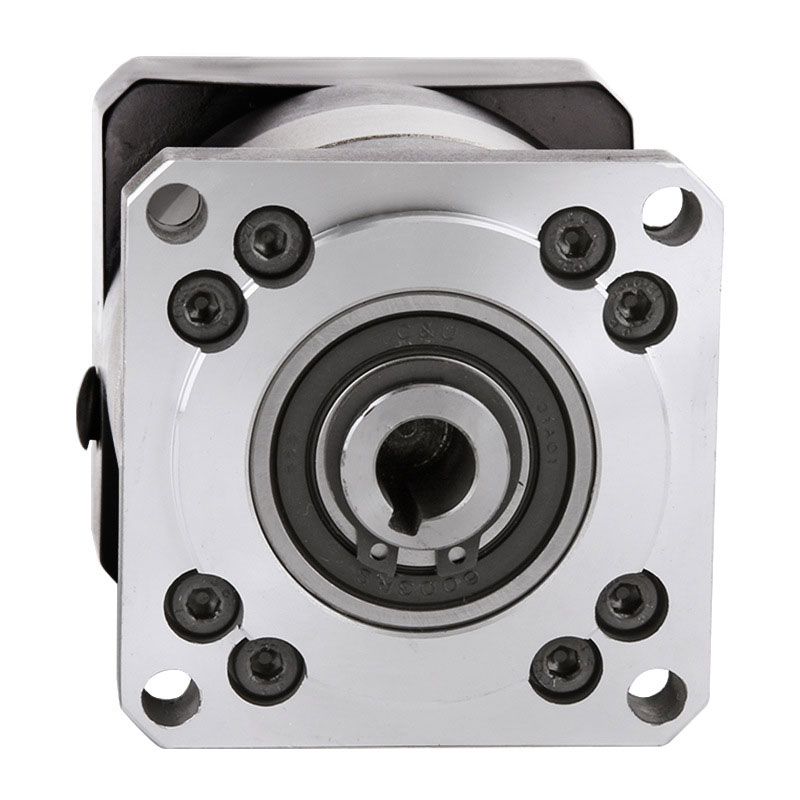

Mini Precise Harmonic Drive Speed Reducer
Planetary Gearbox – High-Efficiency, Compact Transmission Solution for Industrial Automation This advanced harmonic drive speed reducer planetary gearbox is engineered for precision motion control in demanding industrial applications. Designed with a focus on durability, efficiency, and compact design, it delivers reliable performance across a wide range of mechanical systems—from robotic arms to automated assembly lines. Whether you're integrating it into CNC machinery, packaging equipment, or medical devices, this gearbox ensures smooth torque transmission with minimal backlash and long-term operational stability. Key Features: - Single-stage reduction ratios: 4, 5, 7, 10; Bipolar options: 15, 20, 25, 30, 35, 40, 50, 70 - Rated output torque: TN (varies by model); Fault stop torque up to 2×TN for safety under overload - Input speed tolerance: Up to 3000 RPM without performance degradation - Installation flexibility: Mounts in any orientation—ideal for space-constrained setups - Extended service life: Over 2000 hours of continuous operation under full load - Radial force capacity: Up to 300 N at the output shaft - Axial force handling: Supports up to 100 N axial loads - Efficiency range: 90%–94%, minimizing energy loss and heat generation - Lubrication method: Long-life grease system requiring no maintenance over extended periods - IP65-rated protection: Dust-tight and resistant to water jets, ensuring reliability in harsh environments - Backlash: ≤10 arcminutes for high positioning accuracy - Operating temperature range: -10°C to +80°C, suitable for both indoor and outdoor industrial use The internal structure combines harmonic drive technology with planetary gear principles, offering superior torque density, reduced vibration, and exceptional rotational precision. Unlike traditional gearboxes that suffer from wear-induced backlash, this unit maintains consistent performance throughout its lifespan thanks to precision-machined components and optimized lubrication. Its modular design allows easy integration into existing systems, while the lightweight aluminum housing reduces overall system inertia—a critical factor in dynamic motion control applications. Ideal for automation engineers, robotics developers, and OEM manufacturers seeking a robust yet compact solution, this gearbox excels in applications such as: - Servo motor coupling in pick-and-place robots - Precision linear actuators and electric cylinders - Conveyor belt drives requiring accurate speed regulation - Medical imaging equipment where quiet, repeatable motion matters - Semiconductor manufacturing tools needing sub-millimeter positional accuracy - Packaging machines requiring consistent torque delivery across variable loads Customer Feedback: Users praise the unit’s consistent performance over time, noting how it outlasts competitors’ gearboxes in high-cycle operations. Many highlight the low noise levels during operation, which contributes to quieter factory floors—an often-overlooked benefit in modern manufacturing settings. The ability to handle sudden load spikes without failure has made it a favorite among users deploying it in unpredictable production environments. Frequently Asked Questions: What makes this gearbox different from standard planetary reducers? It uses harmonic drive principles within a planetary configuration, resulting in higher torque-to-volume ratio, lower backlash, and smoother motion than conventional designs. Is maintenance required? No. The sealed, long-life lubrication system eliminates the need for periodic oil changes or greasing, making it ideal for hard-to-access installations. Can it be used in extreme temperatures? Yes—it operates reliably from -10°C to +80°C, making it suitable for cold storage facilities, desert environments, or hot industrial zones. How does the efficiency compare to other brands? With up to 94% full-load efficiency, it minimizes power waste and reduces thermal stress on connected motors—especially beneficial in battery-powered or energy-conscious systems. Why choose this product over others? Because it offers an unmatched combination of precision, longevity, and ease of integration—all backed by a manufacturer committed to innovation in servo-driven automation solutions.
Product Categories : Planetary Gearbox
