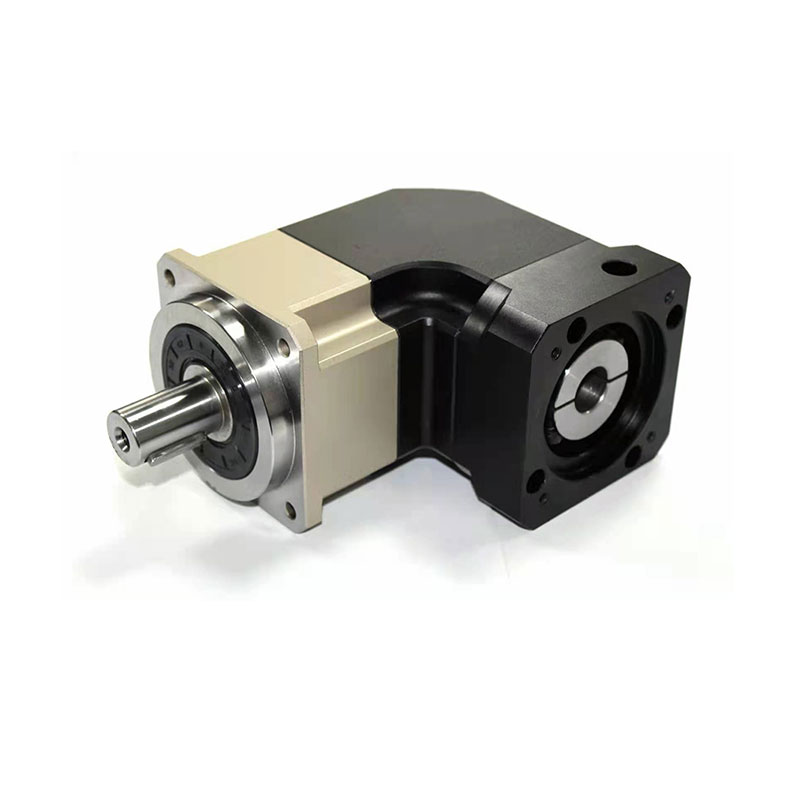

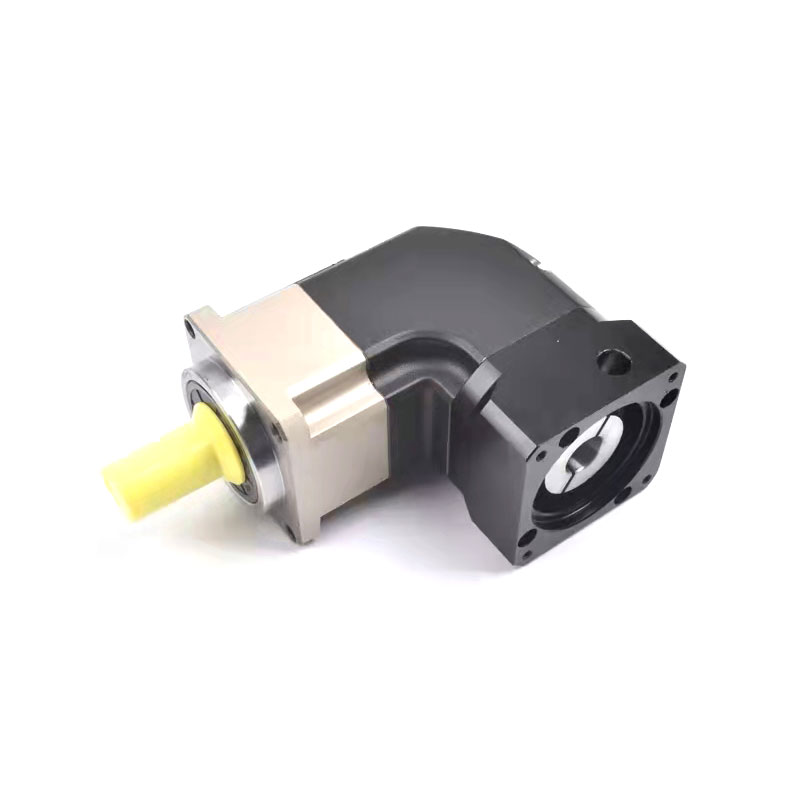

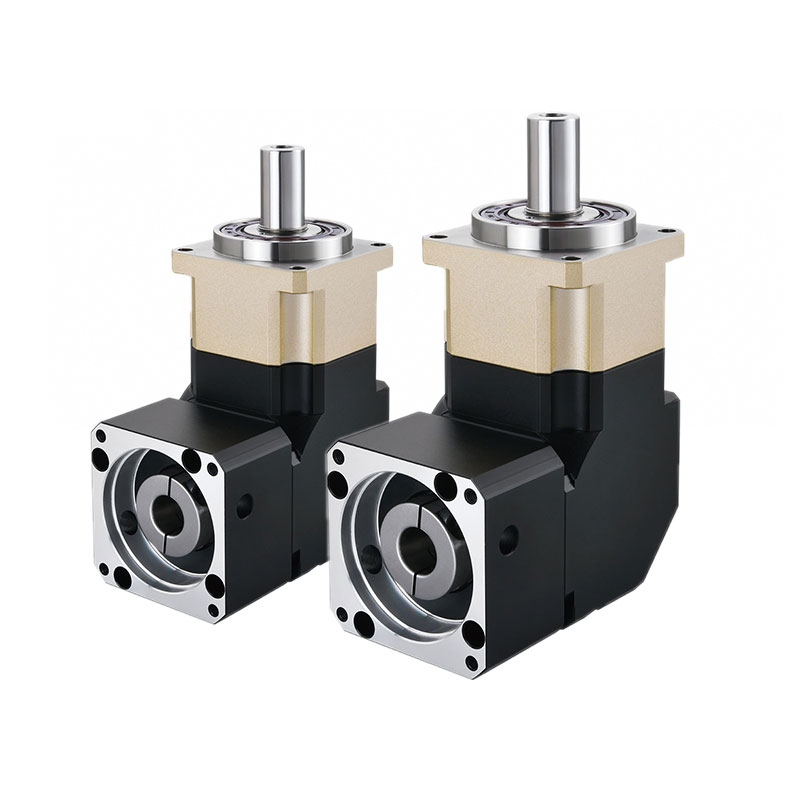

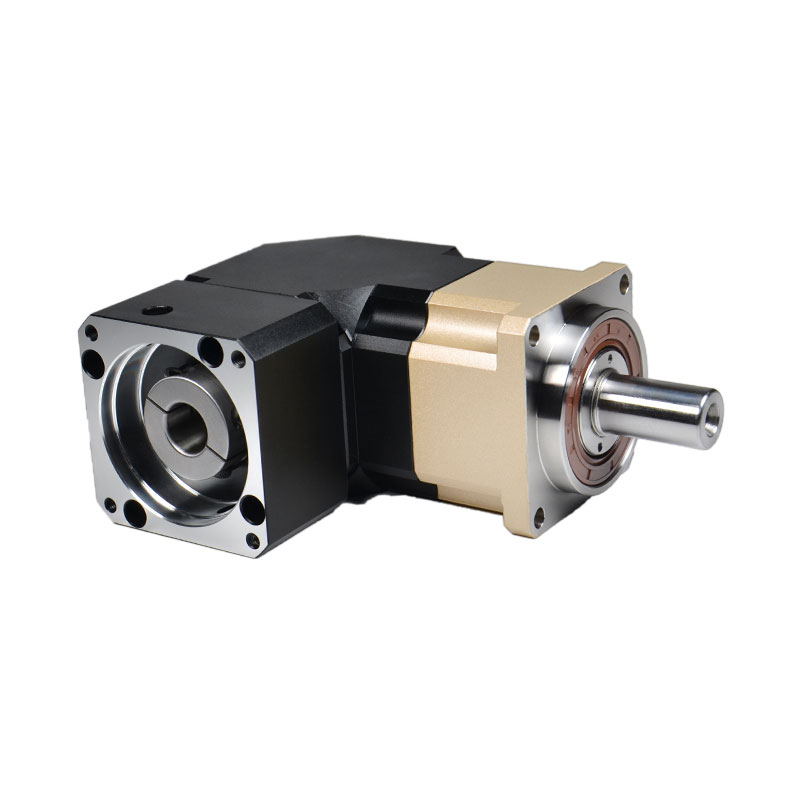

42x60x90x120 Right Angle 90 Degrees Planetary Reducer

Mini Precise Harmonic Drive Speed Reducer Planetary Gearbox – High-Torque, Compact Solution for Industrial Automation

This advanced planetary gearbox is engineered for precision motion control in demanding industrial environments. Designed with a right-angle configuration and harmonic drive technology, it delivers exceptional torque density, minimal backlash, and smooth operation—making it an ideal choice for robotics, automation systems, and heavy-duty machinery worldwide.

Key features include a wide range of gear ratios (15 to 70), high efficiency between 90% and 94%, and robust performance under extreme conditions. With a rated output torque of TN and fault stop torque up to 2TN, this reducer ensures reliable operation even during peak loads. Its compact design allows integration into tight spaces without sacrificing power transmission capabilities—a critical factor in modern manufacturing setups where space optimization is essential.

The unit operates efficiently across a broad temperature range (-10°C to +80°C) and offers long-term lubrication effectiveness, reducing maintenance needs and enhancing system uptime. It supports any installation orientation, providing flexibility during integration into various mechanical systems such as robotic arms, conveyor belts, and electric vehicle drivetrains. The maximum radial force capacity of 300N and axial force tolerance of 100N ensure stable performance under dynamic loading conditions.

Common applications span multiple industries: in industrial automation, it powers CNC machines, packaging equipment, and material handling solutions; in the automotive sector, it enhances power steering and electric motor transmissions; and in robotics, it enables precise joint movement for collaborative and industrial robots alike. Whether used in aerospace actuators, medical devices, or automated guided vehicles, this reducer consistently meets stringent performance requirements.

Users report consistent reliability over extended periods—often exceeding 2,000 hours of continuous operation—thanks to its durable construction and optimized internal geometry. Many engineers appreciate the low noise levels and excellent thermal dissipation properties, which contribute to quieter and more efficient machine operation. Additionally, the modular design facilitates easy replacement and integration within existing mechanical frameworks.

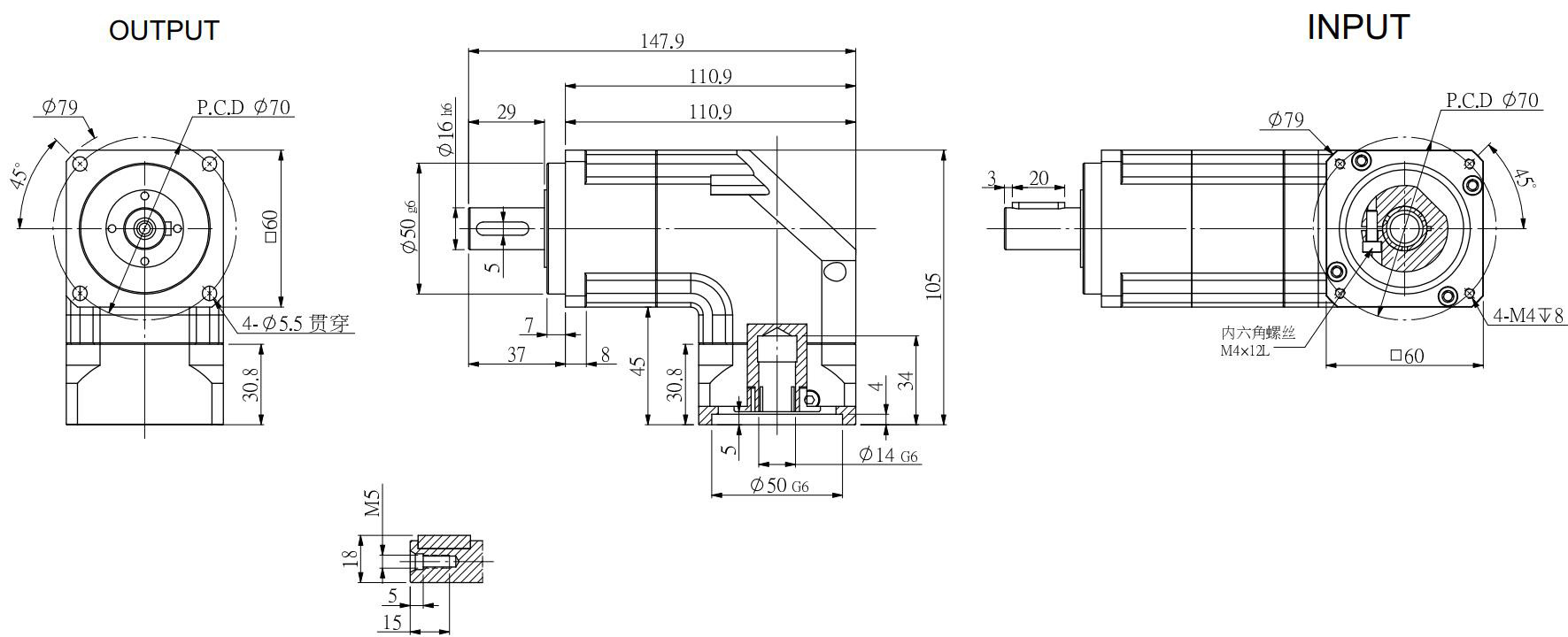

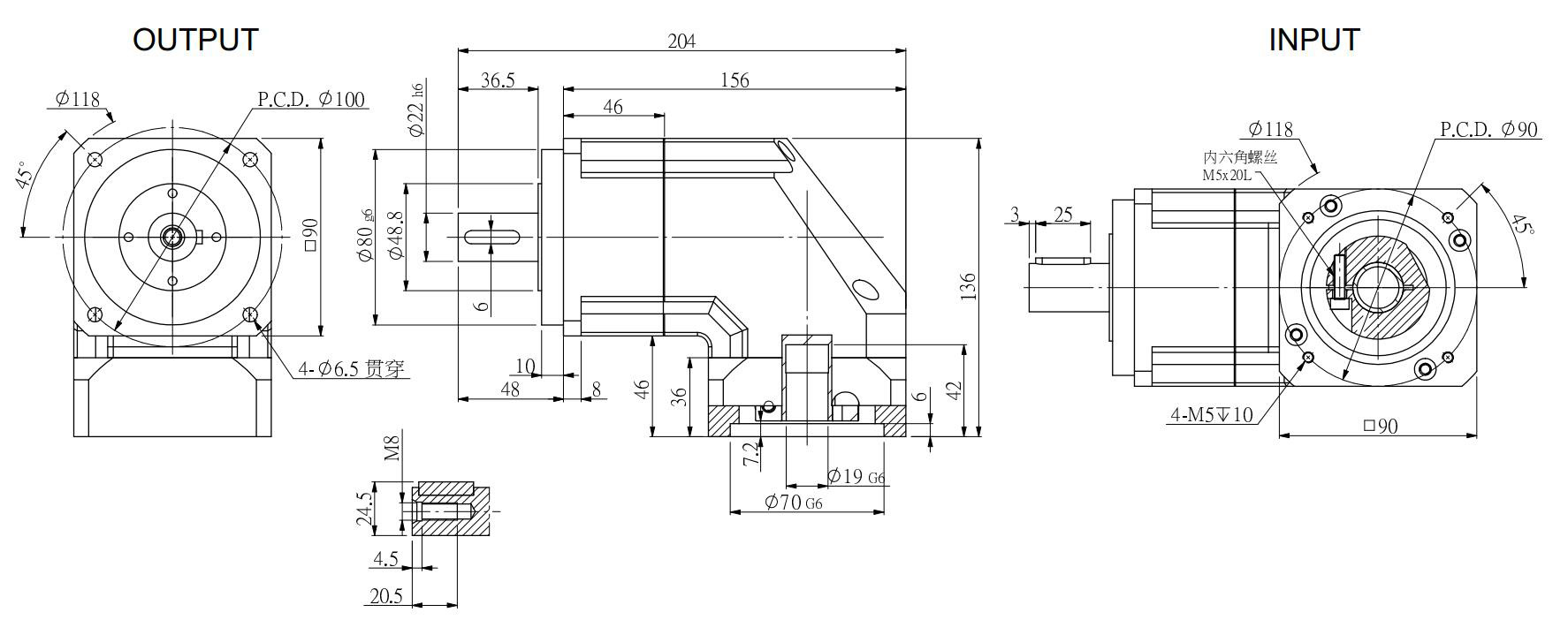

Frequently asked questions include inquiries about compatibility with servo motors, ease of mounting, and expected lifespan under continuous duty cycles. While specific models may vary slightly in dimensions (e.g., 42mm, 60mm, 90mm, or 120mm input shafts), all versions maintain uniform core specifications for torque, speed, and durability. For users seeking a high-performance planetary reducer that combines precision engineering with real-world resilience, this solution stands out as a versatile and future-proof component.

Product Categories : Planetary Gearbox
