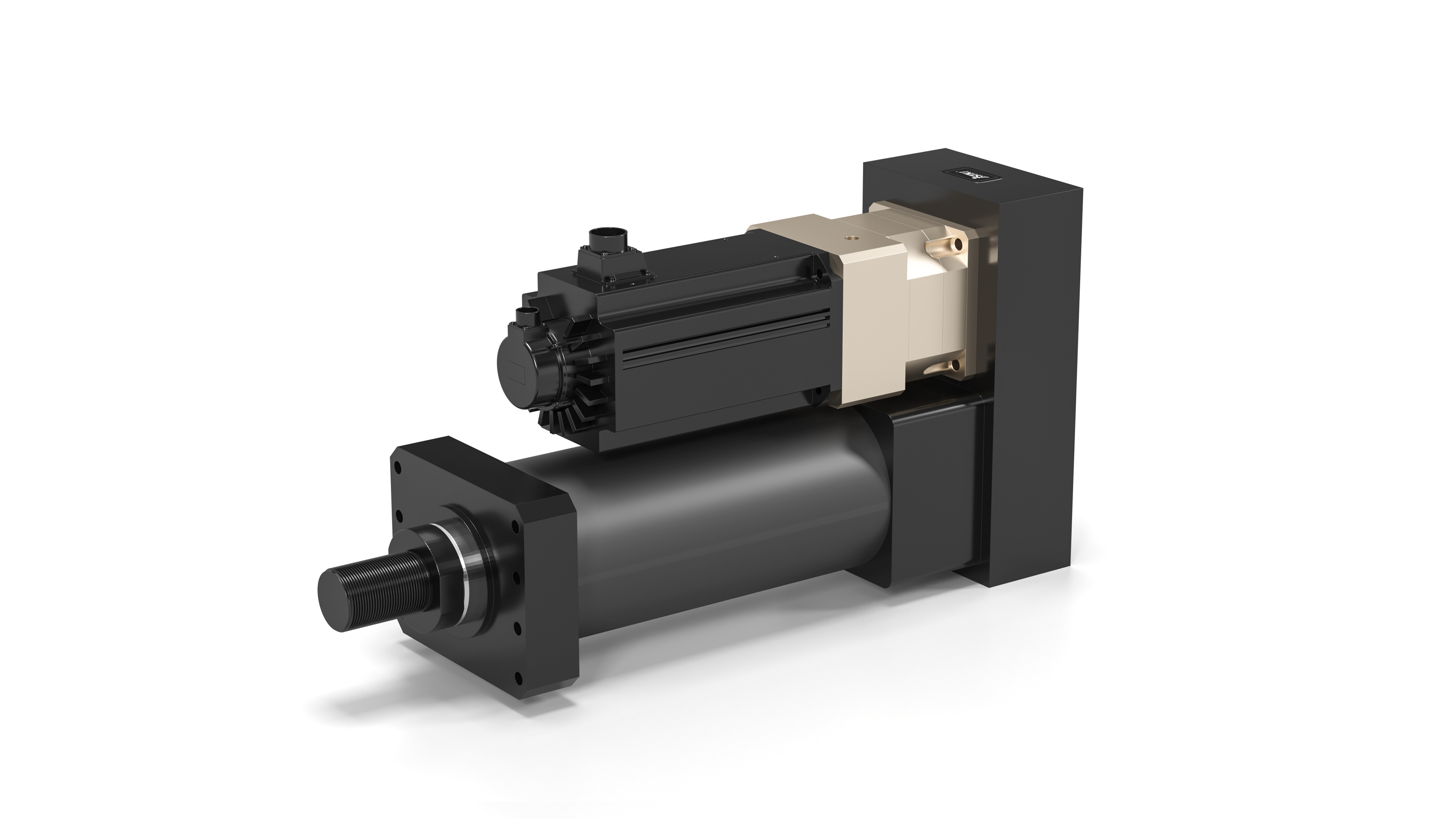

240 Volt Heavy Duty Ball Screw Electric Cylinder

Heavy-Duty 240V Electric Servo Cylinder with Precision Ball Screw Technology – Industrial-Grade Linear Actuator for High-Performance Applications

Engineered for demanding industrial environments, this robust 240-volt electric cylinder delivers exceptional strength, accuracy, and reliability. Designed as a high-torque linear actuator, it combines advanced servo control systems with a precision ball screw mechanism to ensure smooth, repeatable motion under heavy loads. Whether you're automating manufacturing processes or enhancing robotic functionality, this electric cylinder offers a powerful solution tailored for global industrial applications.

Key features include a rugged stainless steel housing that resists corrosion and wear, making it ideal for harsh conditions such as food processing, packaging, material handling, and automation lines. With power options ranging from 400 watts up to 3 kilowatts, the unit supports scalable performance across various tasks—from light-duty positioning to high-force pressing operations. Stroke lengths vary between 30 mm and 1200 mm, allowing flexibility in system design, while thrust capacities span from 50 kilograms to 20 metric tons (0.5 kN to 200 kN), accommodating everything from delicate assembly to heavy lifting needs.

The core innovation lies in its ball screw transmission system—a critical component that ensures minimal backlash, high efficiency, and long-term mechanical stability. Unlike traditional lead screws, ball screws reduce friction and heat generation, resulting in consistent performance over thousands of cycles. Integrated with programmable servo drives or stepper motor controllers, users can achieve sub-millimeter positioning accuracy, enabling precise control in CNC machinery, testing equipment, and automated production cells. This level of repeatability makes the device suitable for industries where consistency and quality are non-negotiable, such as aerospace, automotive, and medical device manufacturing.

Common applications include hydraulic replacement in pneumatic systems, automated clamping mechanisms, adjustable workstations, and robotic end-effectors. Its modular design allows easy integration into existing automation frameworks, supporting both standalone operation and networked control via industrial communication protocols like Modbus or CANopen. The compact body width options—from 40 mm to 180 mm—ensure compatibility with space-constrained installations without sacrificing load capacity or durability.

Users consistently praise the unit’s seamless operation, low maintenance requirements, and energy-efficient performance compared to older hydraulic alternatives. Many report improved productivity due to faster cycle times and reduced downtime, especially when used in continuous-duty scenarios. One engineer noted: “This actuator has replaced our old hydraulic cylinders in the packaging line—it’s quieter, cleaner, and far more accurate.” Another user highlighted its adaptability in custom automation projects, stating, “We were able to program exact travel distances and speeds using the onboard controller, which saved us weeks of development time.”

Q: What voltage does this electric cylinder require? A: It operates on a standard 240-volt AC supply, ensuring stable performance in industrial settings worldwide. Q: Can it be integrated into existing PLC-based systems? A: Yes, it supports common industrial interfaces such as analog inputs, digital I/Os, and serial communication protocols for easy connectivity. Q: Is it suitable for outdoor use? A: While not fully weatherproof, the stainless steel construction provides resistance to moisture and dust, making it appropriate for sheltered outdoor applications when properly enclosed.
