Linear Actuator with 500mm Stroke

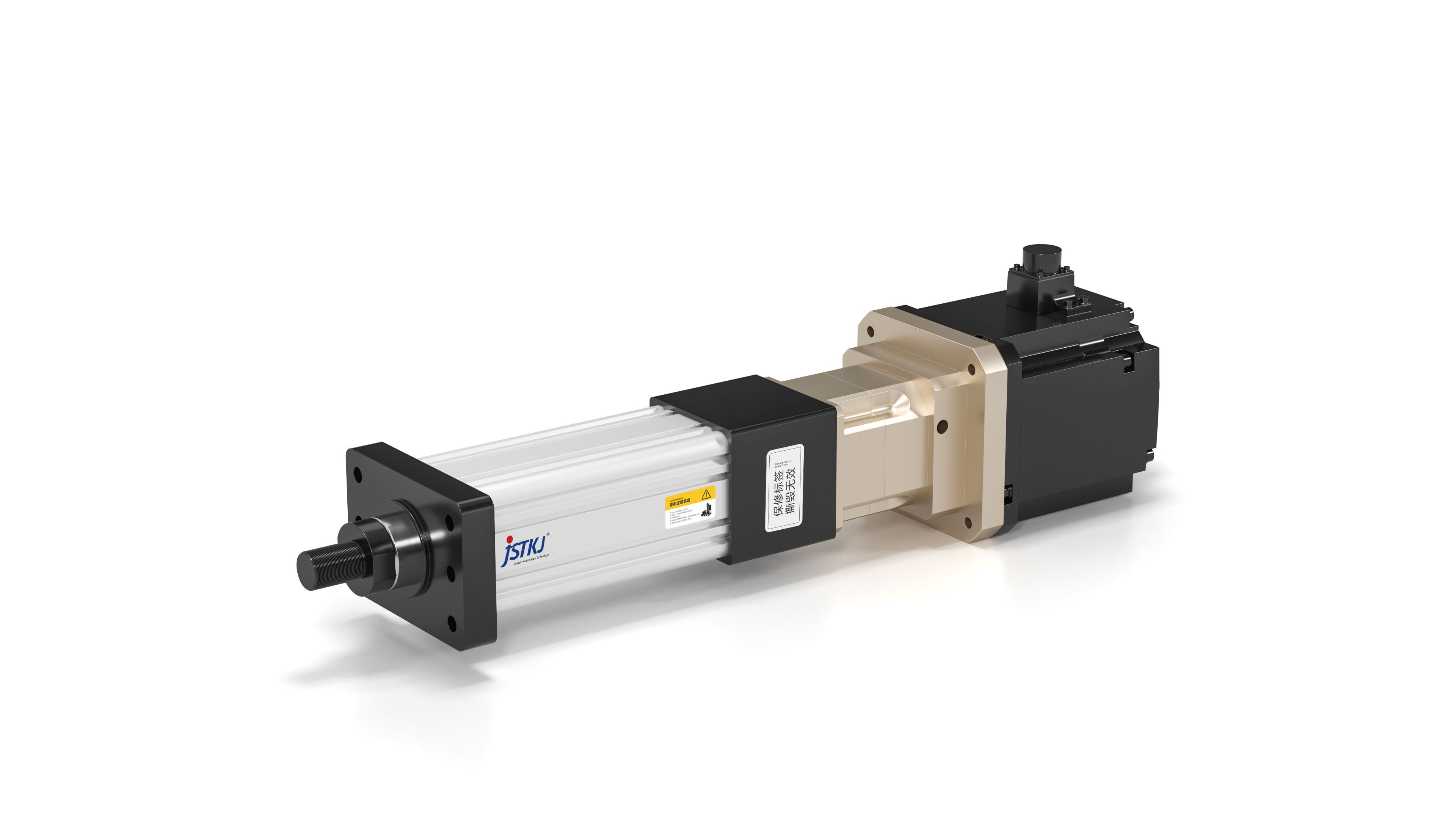

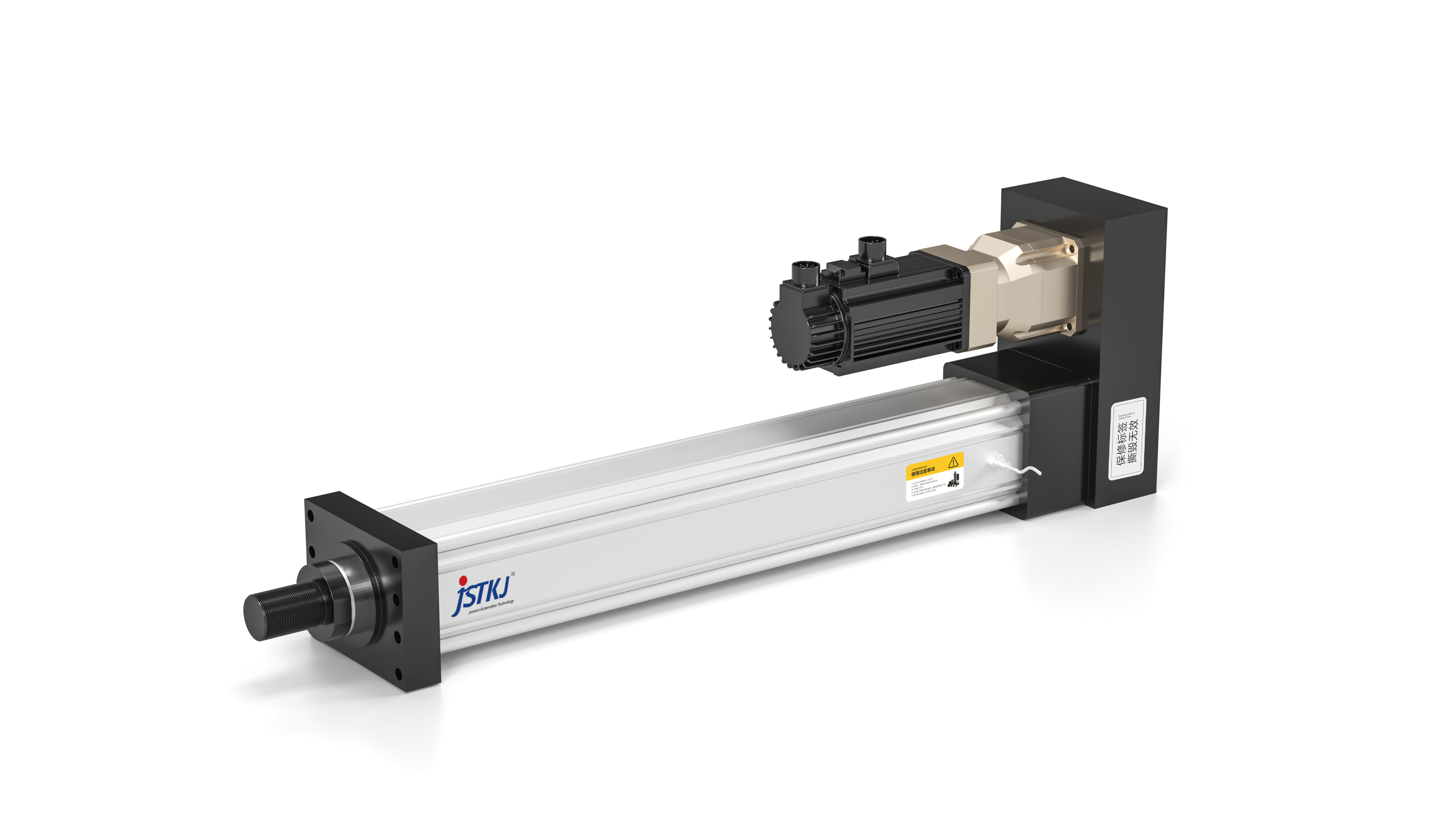

500mm Stroke Linear Actuator – High-Precision Electric Servo Cylinder for Industrial Automation

Discover a robust and versatile linear actuator engineered for precision motion control with a 500mm stroke length. Designed for seamless integration into industrial automation systems, this electric servo cylinder delivers consistent performance across demanding applications requiring extended travel distance, accurate positioning, and reliable mechanical output. Whether you're automating machinery, adjusting heavy loads, or implementing smart building solutions, this actuator offers the perfect balance of power, durability, and adaptability.

Key features include a customizable motor drive system compatible with various electrical inputs—ideal for global deployment—and an advanced screw mechanism (ball screw or lead screw) that ensures smooth, repeatable linear movement. With positioning accuracy up to ±0.02mm and thrust capacities ranging from 10N to 150kN (1kg to 15 metric tons), it supports both light-duty tasks and high-load operations. The unit is built with stainless steel housing for corrosion resistance and includes protective guides such as linear bearings to minimize friction and maximize lifespan under continuous operation.

This 500mm linear actuator excels in environments where controlled motion matters—from automated manufacturing lines and robotic arms to intelligent window systems and adjustable workstations. Its IP65 protection rating ensures resilience against dust and water ingress, making it suitable for indoor and outdoor installations across diverse climates. The operating temperature range spans from -20°C to +80°C, allowing flexibility in extreme conditions without compromising functionality.

Engineered for customization, users can specify stroke length (from 30mm to 15000mm), speed (0.1–1 m/s), and mounting configurations based on project-specific needs. This modular design empowers engineers and integrators to tailor the device to exact application requirements, whether for OEM production or retrofitting existing equipment. Additional options include variable power input (400W–3kW), multiple body widths (40mm to 180mm), and compatibility with servo motors for closed-loop feedback control—ensuring optimal synchronization in complex automation workflows.

Users have reported exceptional reliability during long-term use in factory settings, noting minimal maintenance intervals and consistent repeatability over thousands of cycles. Many appreciate the quiet operation compared to pneumatic alternatives, especially in noise-sensitive environments like offices or medical facilities. Feedback also highlights the ease of installation and the ability to fine-tune position via programmable controllers—a key advantage for modern IoT-enabled systems.

Frequently asked questions often revolve around compatibility with existing control systems, environmental tolerances, and customization timelines. Most customers find that standard interfaces allow straightforward integration with PLCs or microcontrollers, while the wide operational temperature range makes it ideal for use in both cold storage warehouses and hot manufacturing plants. For those seeking tailored specifications beyond stock models, dedicated engineering support ensures rapid prototyping and scalable production.

Product Categories : Servo Electric Cylinder
