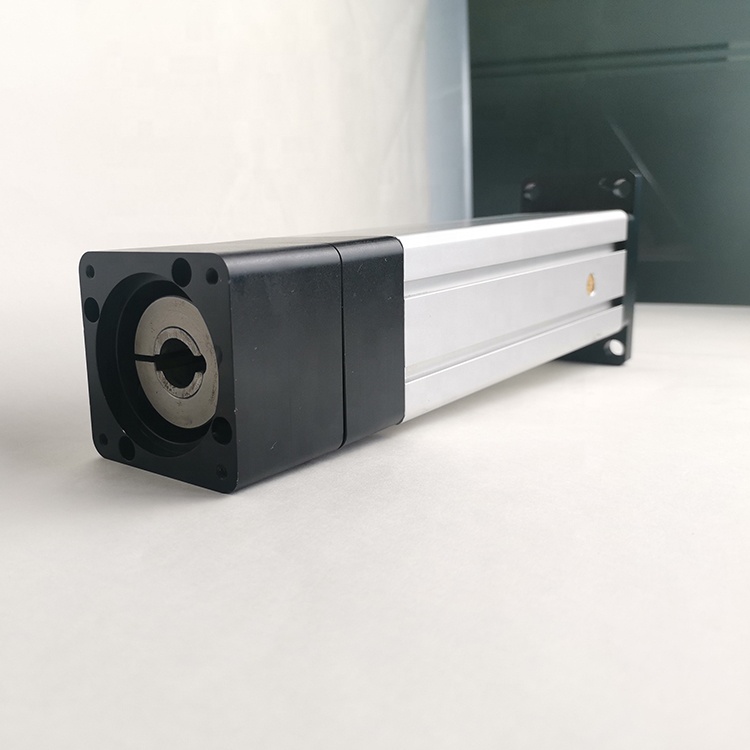

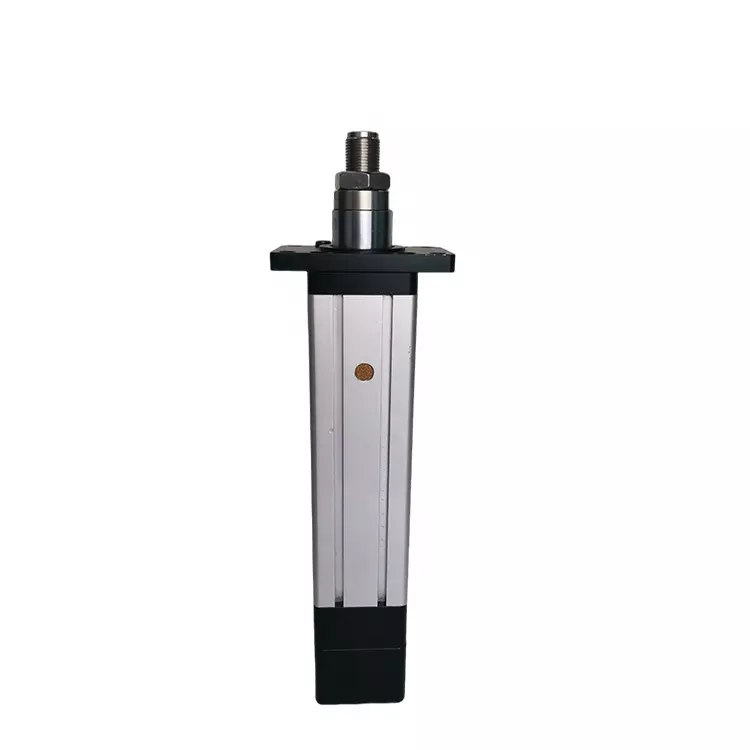

Large Thrust Ball Screw Electric Telescopic Linear Actuators

High-Thrust Ball Screw Electric Telescopic Linear Actuator – Precision, Power, and Customization for Industrial Automation

Engineered for demanding environments across global manufacturing, medical, and automation sectors, the large thrust ball screw electric telescopic linear actuator delivers exceptional performance through advanced mechanical design and high-precision engineering. This device transforms rotational motion into smooth, controlled linear movement—ideal for applications requiring both heavy load capacity and exact positioning accuracy.

At its core, this actuator integrates a high-torque motor, a hardened ball screw mechanism, and a robust telescoping housing. The ball screw assembly minimizes friction using precision ball bearings, ensuring efficient energy transfer and extended service life. Unlike traditional lead screws, it offers superior durability under continuous operation while maintaining minimal backlash—a critical factor in automated systems where repeatability matters most.

Key features include a maximum thrust range from 10N to 150kN (1kg to 15 metric tons), stroke lengths spanning 30mm to 15,000mm, and speeds up to 1 meter per second. Positioning accuracy is maintained within ±0.02mm, making it suitable for applications such as CNC machining, robotic arms, and precision handling equipment. With customizable drive modes—including servo motors, stepper motors, or DC/AC options—it adapts seamlessly to diverse control systems worldwide.

Designed for industrial resilience, the unit operates reliably between -20°C and +80°C and boasts an IP65 protection rating, shielding internal components from dust ingress and water splashes. Available in stainless steel construction, it resists corrosion in humid or chemically exposed environments—an asset for food processing, pharmaceuticals, and marine industries. Body widths vary from 40mm to 180mm, allowing engineers to select the optimal form factor based on space constraints and mechanical integration needs.

Commonly used in surgical tables, diagnostic imaging machines, and patient lift systems, these actuators enable precise vertical adjustments in healthcare settings. In industrial automation, they power conveyor lifts, packaging mechanisms, and adjustable workstations. Their modular design also supports retrofitting into legacy machinery, reducing downtime during upgrades.

Users praise the product for its consistent output, quiet operation, and ability to handle variable loads without degradation over time. Many highlight the ease of integration with existing PLCs and motion controllers, especially when leveraging custom-built configurations tailored to specific travel distances, force requirements, or mounting styles.

Why choose this actuator over alternatives? Its combination of high-force capability, fine-tuned positioning, and environmental resistance sets it apart in markets seeking reliable electromechanical solutions. Whether you're designing a new system or optimizing an existing one, this electric cylinder provides the flexibility and performance needed for long-term success in global industries.

For questions about customization, installation methods, or technical specifications, our team is ready to assist with detailed guidance based on your unique project goals. No matter the application—whether it's material handling, automation, or medical equipment—this actuator stands out as a versatile, durable, and intelligent choice.
