Reducer with Low Backlash for Helical Gear

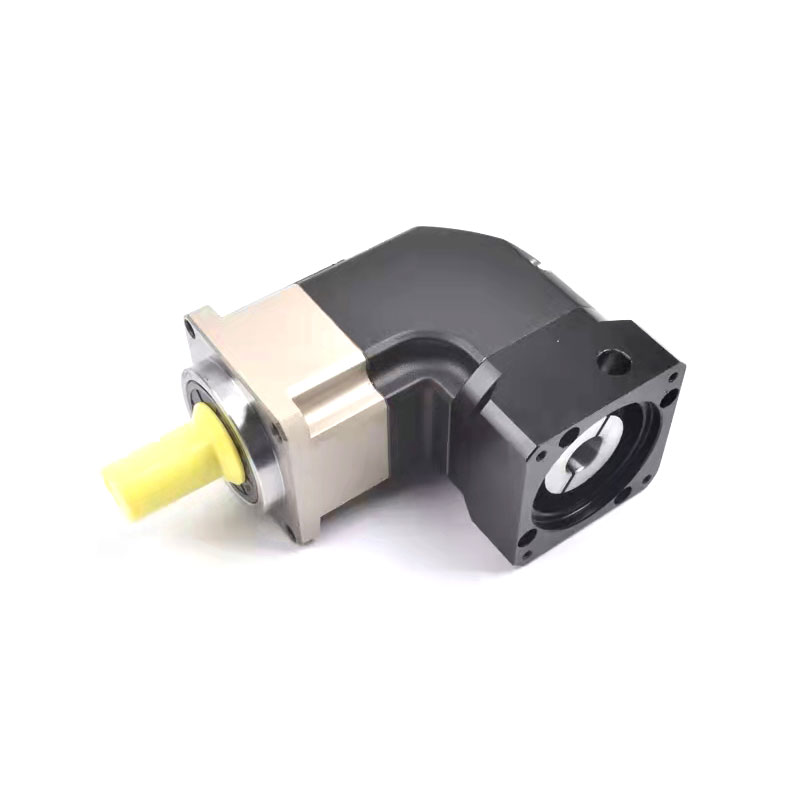

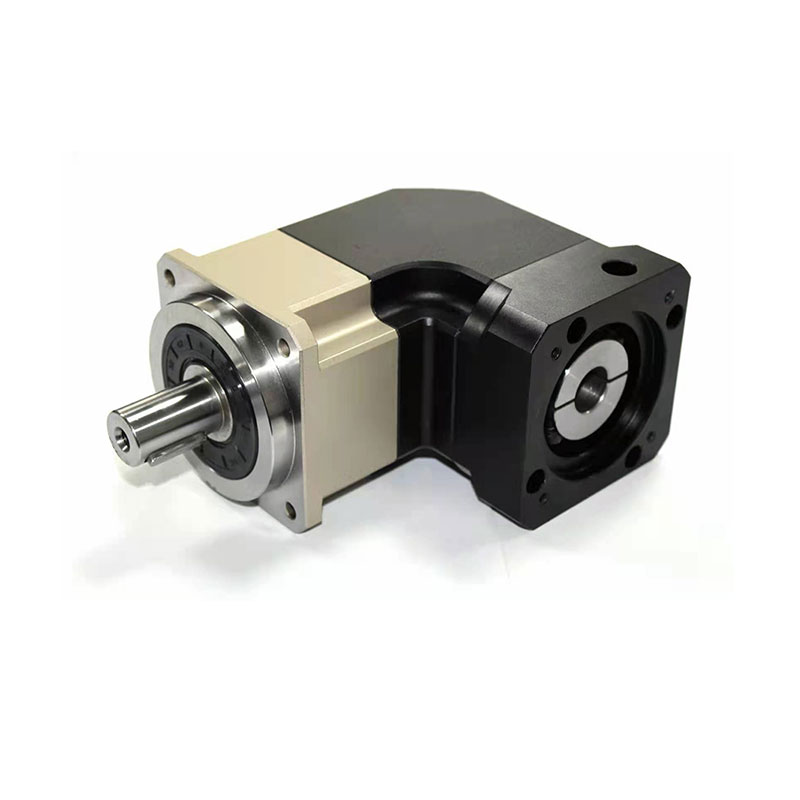

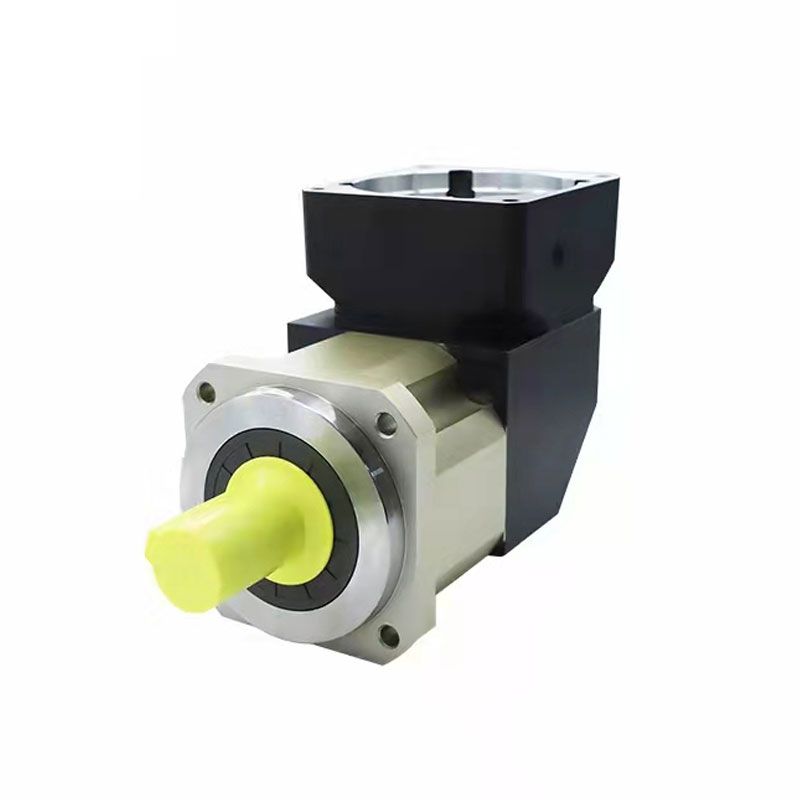

Mini Precise Harmonic Drive Speed Reducer with Low Backlash for Helical Gears – High-Precision Gearbox for Industrial Automation, Robotics, and Medical Devices

This compact yet powerful harmonic drive speed reducer is engineered for applications demanding exceptional accuracy, smooth motion, and long-term reliability. Designed specifically for helical gear systems, it delivers minimal backlash—ensuring precise positioning and repeatable performance across a wide range of mechanical environments. Whether used in advanced robotics, medical instrumentation, or aerospace mechanisms, this gearbox offers the high-torque transmission and quiet operation essential for modern precision engineering.

Key features include a low backlash rating of 10 arcminutes or less, which significantly reduces play between meshing gear teeth—critical for maintaining accuracy during dynamic motion. The helical gear configuration enhances load distribution across tooth surfaces, resulting in reduced wear, lower noise levels, and increased operational lifespan compared to traditional spur gears. With full-load efficiency ranging from 90% to 94%, this reducer ensures minimal energy loss while maximizing power transfer. It operates reliably within a temperature range of -10°C to 80°C and supports input speeds up to 3000 RPM, making it suitable for both continuous and intermittent duty cycles.

Manufactured using tight tolerance machining and controlled assembly processes, this Planetary Gearbox guarantees consistent output torque and minimal variation over time. Its rated output torque (TN) and maximum radial/axial forces (Fr=300N, Fa=100N) are optimized for industrial-grade use, supporting heavy-duty operations without compromising on smoothness or accuracy. Lubrication is designed for long-term effectiveness, eliminating the need for frequent maintenance—a major advantage in automated or hard-to-access installations. Additionally, its flexible mounting options allow integration into various mechanical architectures, including robotic joints, CNC machines, and automated guided vehicles (AGVs).

Common application scenarios include robotic arms in manufacturing lines, where micro-adjustments must be executed flawlessly; surgical robots requiring sub-millimeter precision; and satellite deployment systems that demand zero failure risk under extreme conditions. In industrial automation, this reducer improves cycle times and product quality by enabling accurate control of conveyor belts, pick-and-place mechanisms, and machine tool spindles. For engineers designing next-generation medical imaging devices or laboratory automation platforms, this unit provides the necessary stability and responsiveness for reliable diagnostic outcomes.

Users consistently praise its combination of durability, precision, and ease of installation. Many report enhanced system repeatability after replacing older gearboxes with this model, particularly in applications involving closed-loop servo drives. While some note the initial investment cost, the extended service life and reduced downtime make it a cost-effective choice over time. Customers also appreciate how the compact form factor allows space-saving integration into existing designs without sacrificing performance.

Frequently asked questions often center around compatibility with existing motors, thermal performance in confined spaces, and expected maintenance intervals. This unit is compatible with standard servo and stepper motors and performs efficiently even when enclosed due to its effective heat dissipation design. Maintenance is minimal thanks to sealed lubrication systems rated for over 2000 hours of continuous operation, though periodic inspection is recommended for critical applications. For users seeking alternatives to conventional planetary reducers, this harmonic drive solution offers superior accuracy, especially in low-backlash environments where positional fidelity matters most.

Product Categories : Planetary Gearbox
