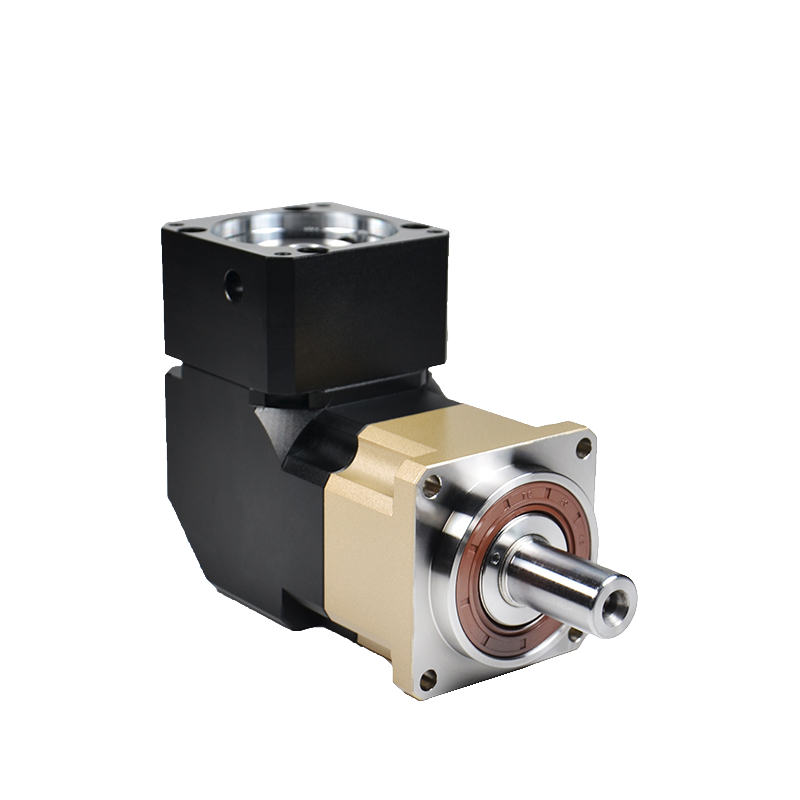

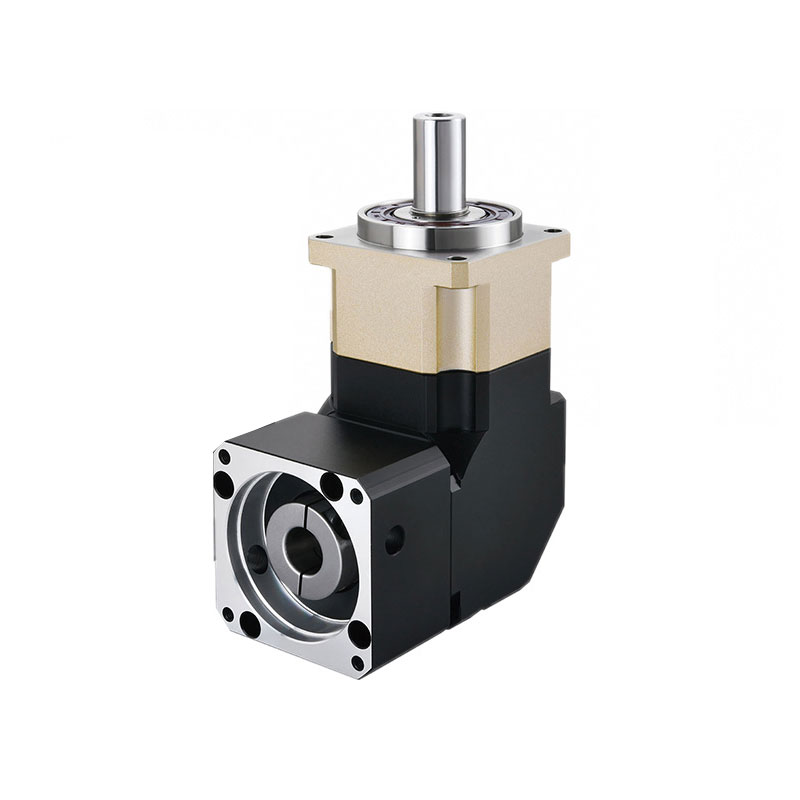

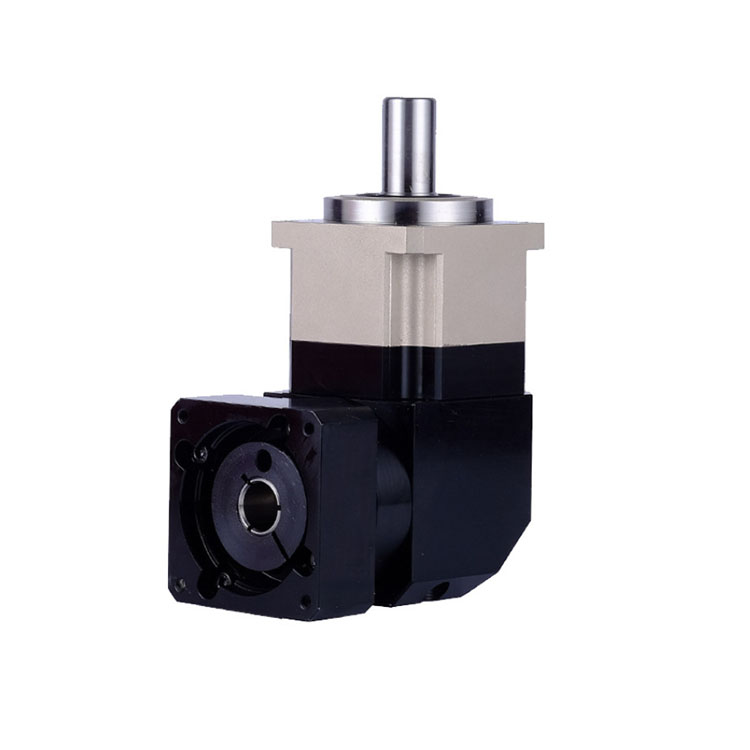

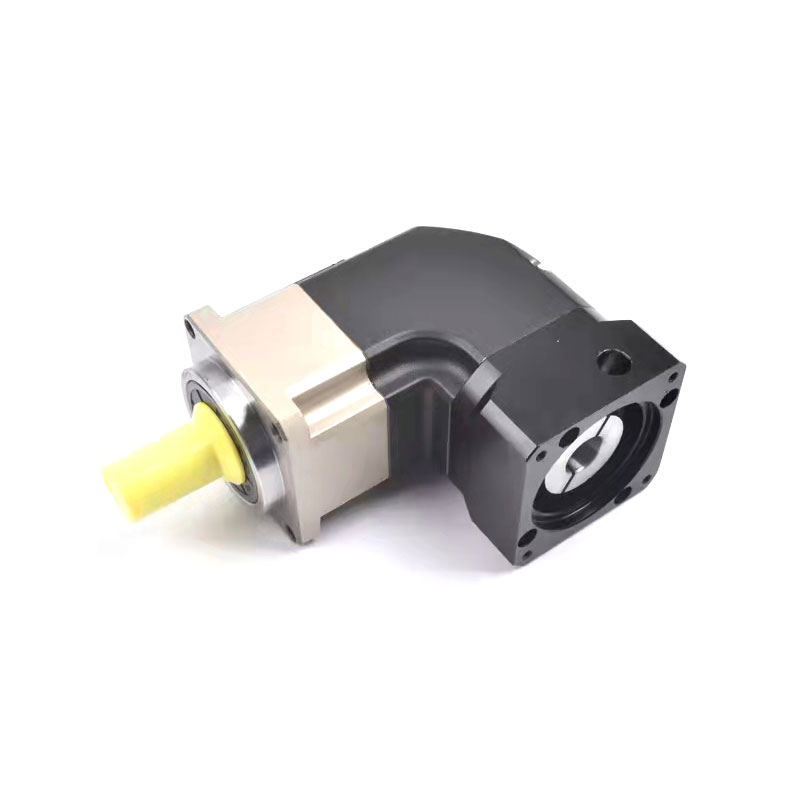

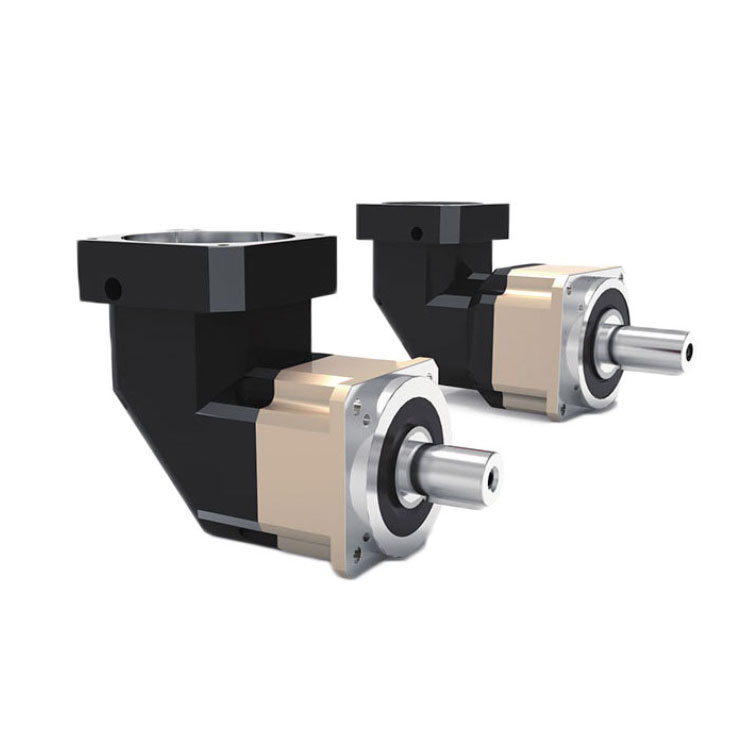

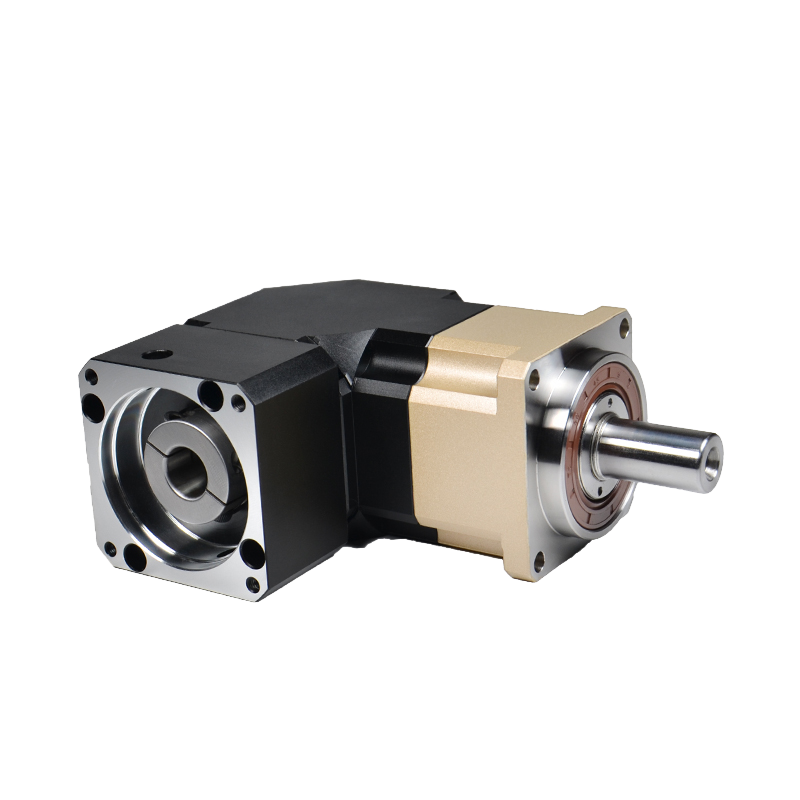

90 Degree Low Noise Right Angle Planetary Gearboxes

90 Degree Low Noise Right Angle Planetary Gearbox – High Efficiency, Precision Engineering for Industrial Automation

This advanced 90-degree right angle planetary gearbox is engineered for optimal performance in demanding industrial environments. Designed with a robust planetary gear system and precision-machined components, it delivers smooth operation, exceptional torque output, and minimal noise—making it ideal for applications where reliability, quiet operation, and high power density are critical. Whether used in CNC machinery, packaging systems, or robotic automation, this unit ensures consistent performance under heavy loads.

Key features include a helical tooth design that reduces vibration and sound levels to under 65 dB, ensuring quieter operation compared to traditional spur gears. The internal gearing configuration—comprising sun gear, planet gears, and an internal ring gear—allows for multiple teeth to engage simultaneously, resulting in enhanced load distribution and reduced wear. With efficiency rates ranging from 94% to 98%, these gearboxes maximize energy transfer while minimizing heat generation and mechanical losses.

The DABR60 model offers a wide range of gear ratios (3:1 to 10:1), enabling customization for specific speed and torque requirements. Its input speed capability up to 3000 RPM and output speeds between 1000–3000 rpm make it suitable for both high-speed and low-speed applications. Backlash is tightly controlled at ≤7–10 arcminutes, providing accurate motion control essential for precision manufacturing processes like laser cutting and robotic arm movement.

Engineered for durability, the gearbox operates reliably across diverse industries including food packaging, printing machines, automation equipment, and material handling systems. Built with a modular structure and support for OEM customization, it can be integrated into existing mechanical designs with ease. The housing is constructed from high-strength materials to withstand continuous operation in harsh conditions, while the 1-year warranty underscores its quality assurance standards.

Users consistently praise the gearbox’s combination of compact size, high torque density, and low operational noise—particularly in automated production lines where space constraints and acoustic compliance are important factors. Many report improved machine uptime due to reduced maintenance needs, thanks to the optimized gear meshing and efficient thermal management.

Common questions often center around compatibility with different motors, installation orientation, and expected lifespan under various duty cycles. This model supports standard motor coupling interfaces and is designed for vertical or horizontal mounting without compromising performance. With proper lubrication and routine inspection, users can expect over 10,000 hours of reliable service in typical industrial settings.

For engineers seeking a dependable, high-performance transmission solution that balances efficiency, precision, and quiet operation, this planetary gearbox stands out as a premium choice for modern industrial automation systems worldwide.

Product Categories : Planetary Gearbox
