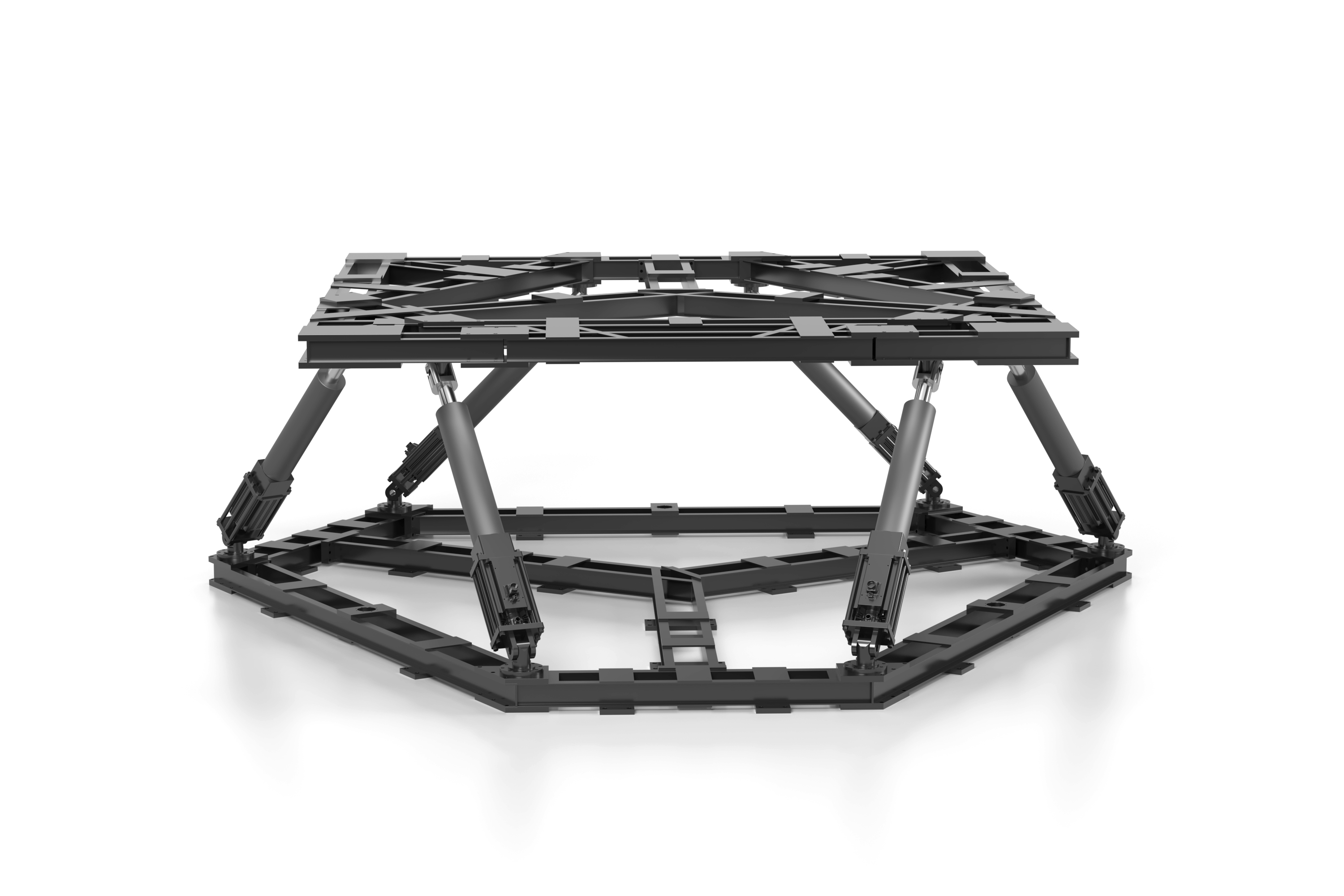

JST-LZYD-P052 Submarine Test Platform: Advanced 6DOF Simulation System for Underwater Vehicle R&D The JST-LZYD-P052 is a high-precision, six-degree-of-freedom (6DOF) motion simulation platform engineered specifically for advanced submarine control system testing and validation. Designed in collaboration with leading naval research institutions, this state-of-the-art test bed enables realistic replication of complex underwater dynamics—including ocean current effects, evasive maneuvers, and emergency descent scenarios—under controlled laboratory conditions. By integrating robust mechanical design with precise motion control algorithms, the platform delivers unparalleled accuracy in posture adjustment, making it an essential tool for marine engineering teams focused on improving submarine performance, safety, and reliability. Key Features: - Load capacity up to 10,500 kg total (8,000 kg effective payload) - Full 6-axis movement: X, Y, Z translations and pitch, roll, yaw rotations - High-speed actuation: ±30°/s angular velocity, ±200°/s² acceleration - Ultra-fine positioning resolution: 0.05° repeat accuracy for angular axes; 0.2 mm for linear displacement - Wide frequency response range: 0.0 Hz to 20 Hz — ideal for simulating both slow drifts and rapid dynamic responses - Stroke hysteresis ≤ 0.5 mm, ensuring consistent repeatability across thousands of cycles - Integrated power system: 80 kW continuous operation capability This experimental rig combines industrial-grade servo actuators, real-time feedback control systems, and modular frame architecture to provide stable, reliable, and scalable testing capabilities. Its ability to simulate true underwater motion profiles allows engineers to evaluate sensor fusion algorithms, autopilot logic, hull structural integrity, and hydrodynamic behavior without exposing prototypes to costly or dangerous sea trials. The platform’s design supports iterative development workflows, reducing time-to-market while enhancing confidence in system-level performance under extreme operational envelopes. Ideal for use in military and civilian submarine R&D programs, this system serves as a critical bridge between theoretical modeling and field deployment. Whether validating new control laws for autonomous underwater vehicles (AUVs), assessing gyroscopic stabilization mechanisms, or conducting fatigue life analysis of onboard components, the JST-LZYD-P052 offers a safe, repeatable, and highly accurate environment for comprehensive evaluation. It also supports integration with data acquisition systems, motion capture technologies, and digital twin models for enhanced analysis and predictive maintenance strategies. Users report significant reductions in prototype failure rates after implementing lab-based simulations using this platform. Engineers appreciate its flexibility in configuring custom motion profiles based on historical oceanographic data or mission-specific requirements. Researchers note improved correlation between simulated results and actual sea trial outcomes, which enhances decision-making during early-stage design phases. Common questions include how the system handles multi-axis coupling effects, whether it can be adapted for non-submarine applications like ROVs or underwater drones, and how it integrates with existing test infrastructure. The answer lies in its open architecture and programmable control interface, allowing seamless adaptation for various underwater vehicle platforms. Additionally, its low maintenance needs and long-term durability make it a cost-effective investment for any organization serious about advancing underwater technology. With precise angular and translational control, high load tolerance, and broad application potential, the JST-LZYD-P052 stands out as one of the most capable 6DOF test benches available today—not just for submarines, but for any project requiring rigorous environmental simulation in maritime contexts.
