Six Degrees of Freedom Motion Platform with Servo Electric Cylinders - High-Precision Simulation System

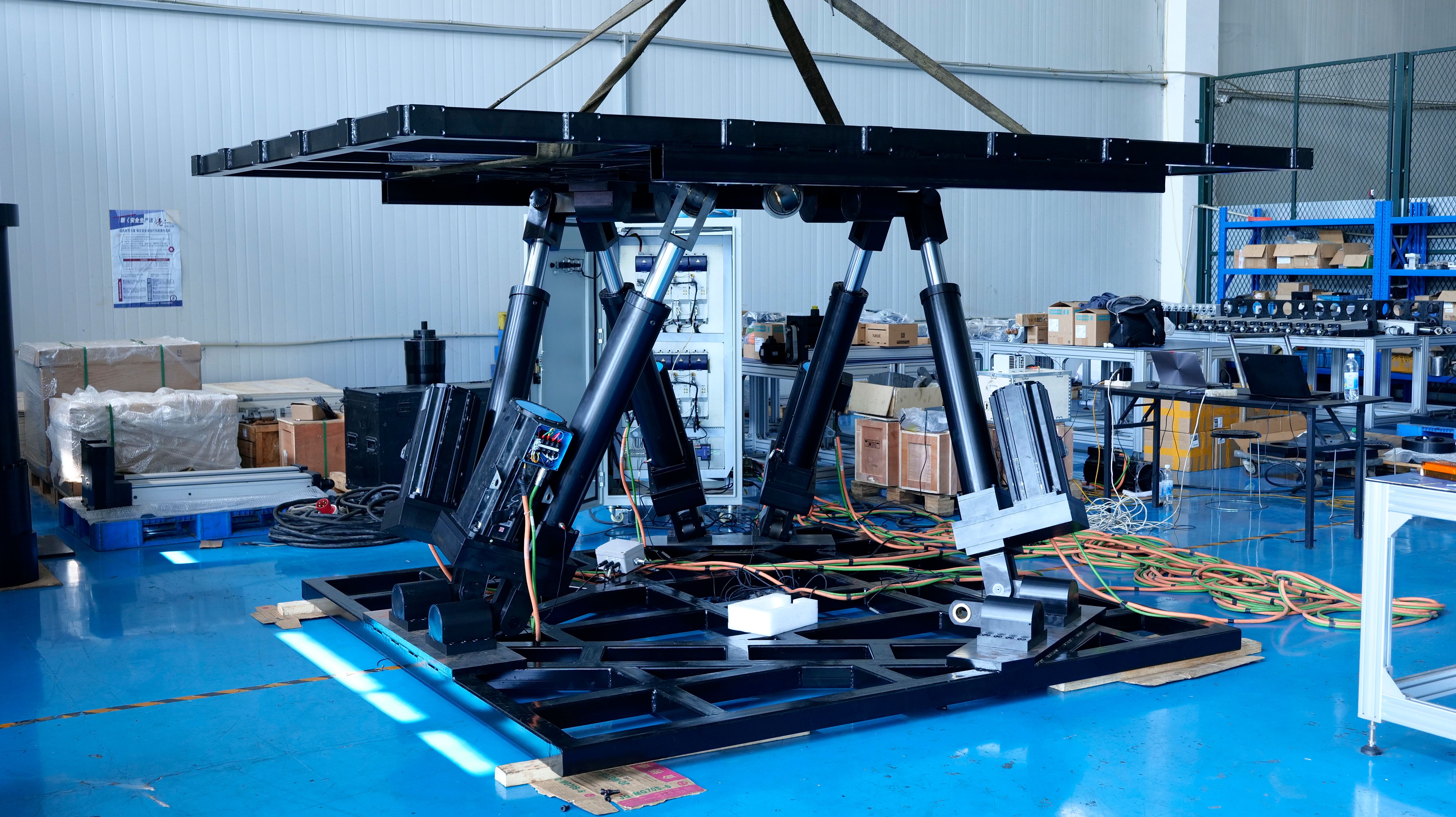

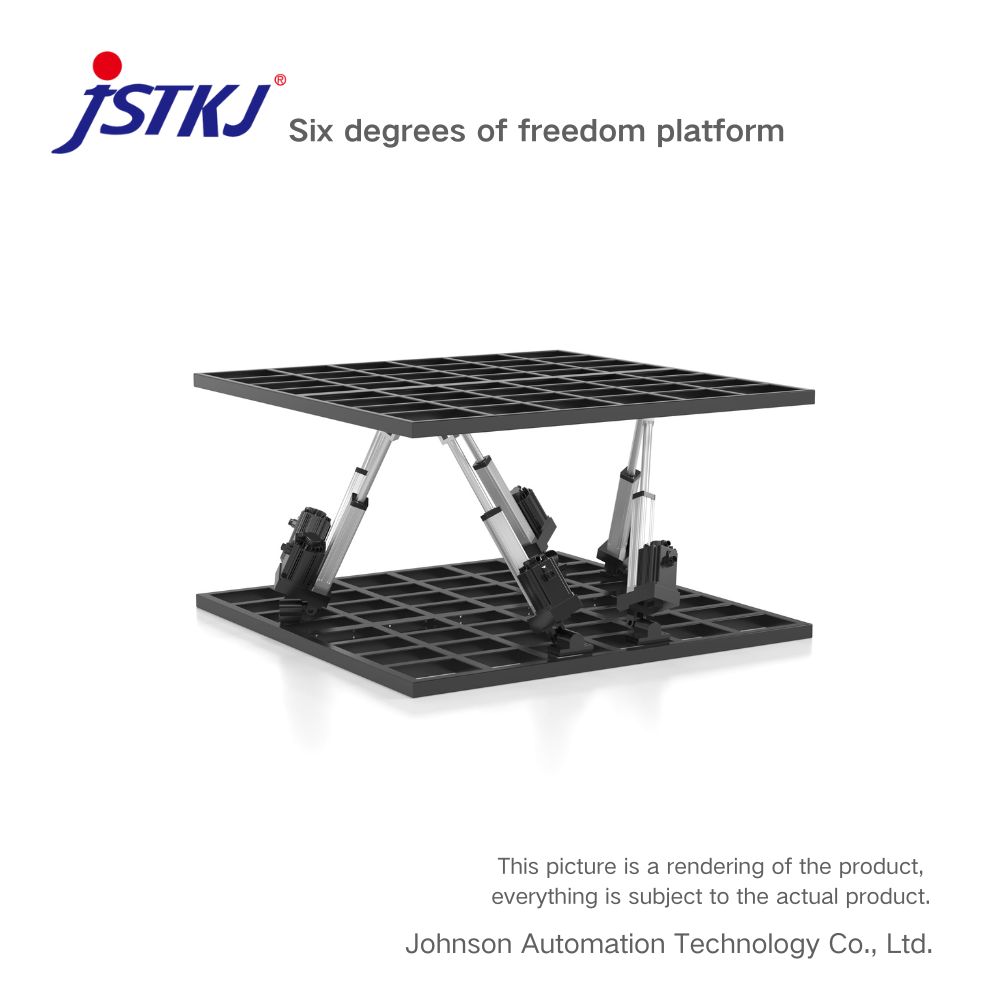

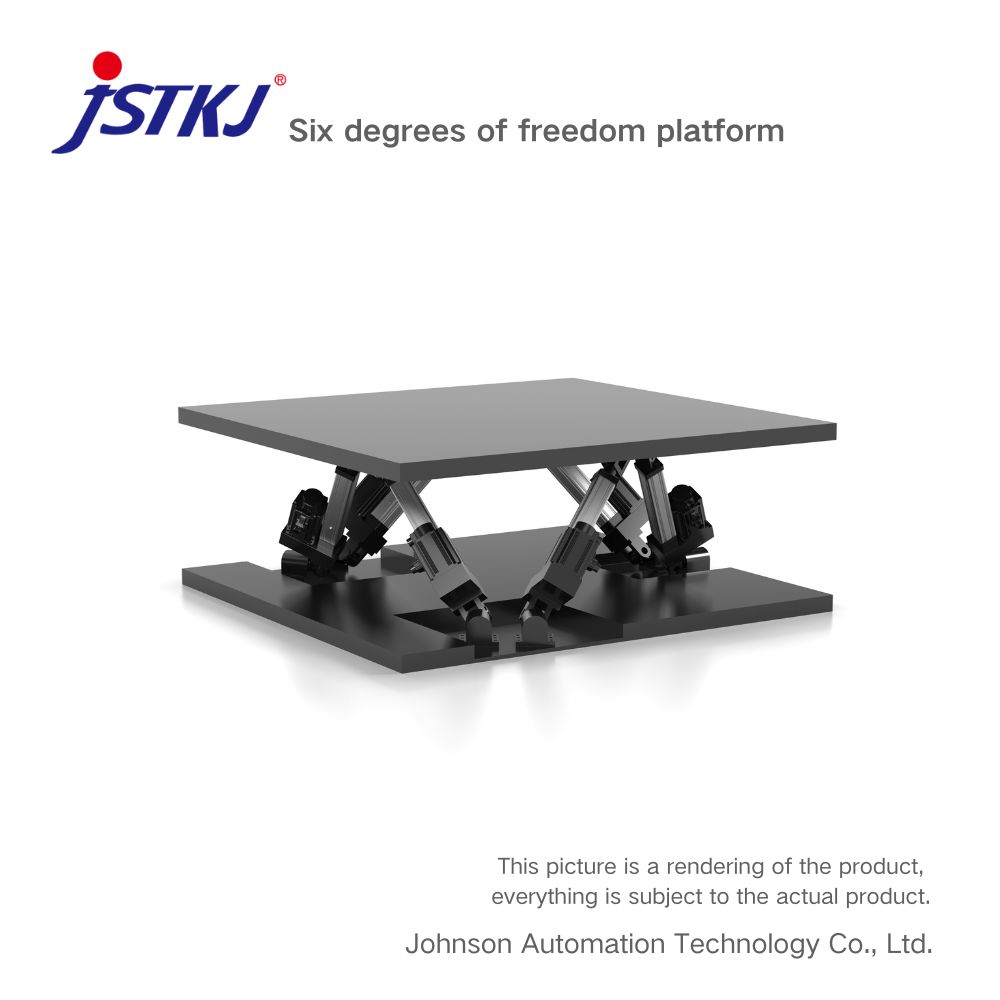

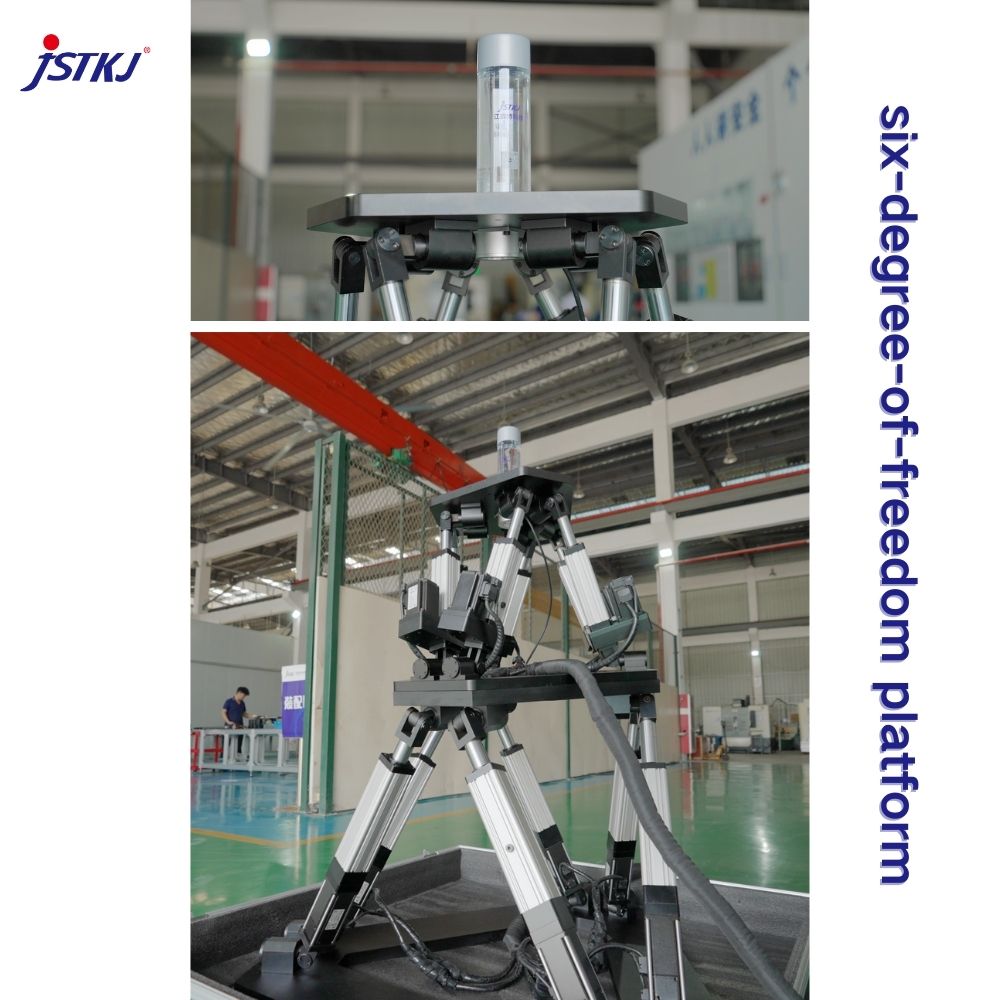

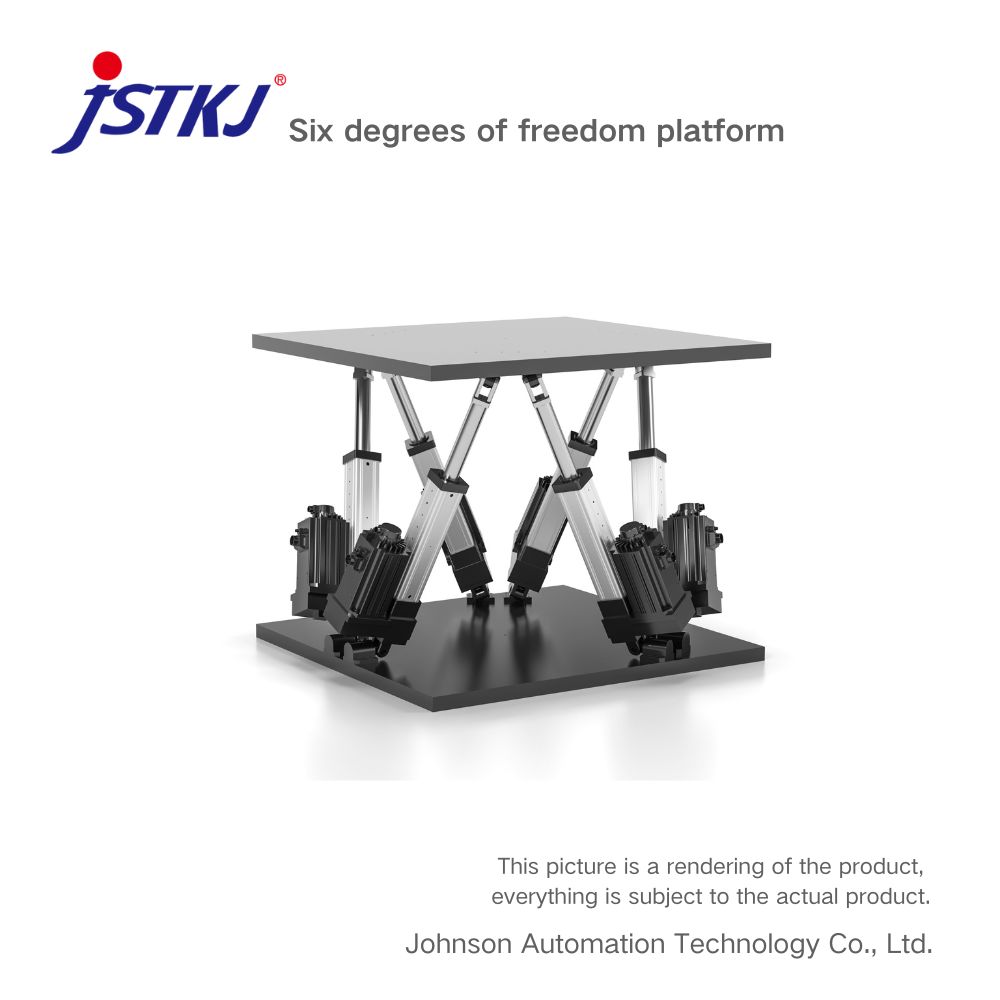

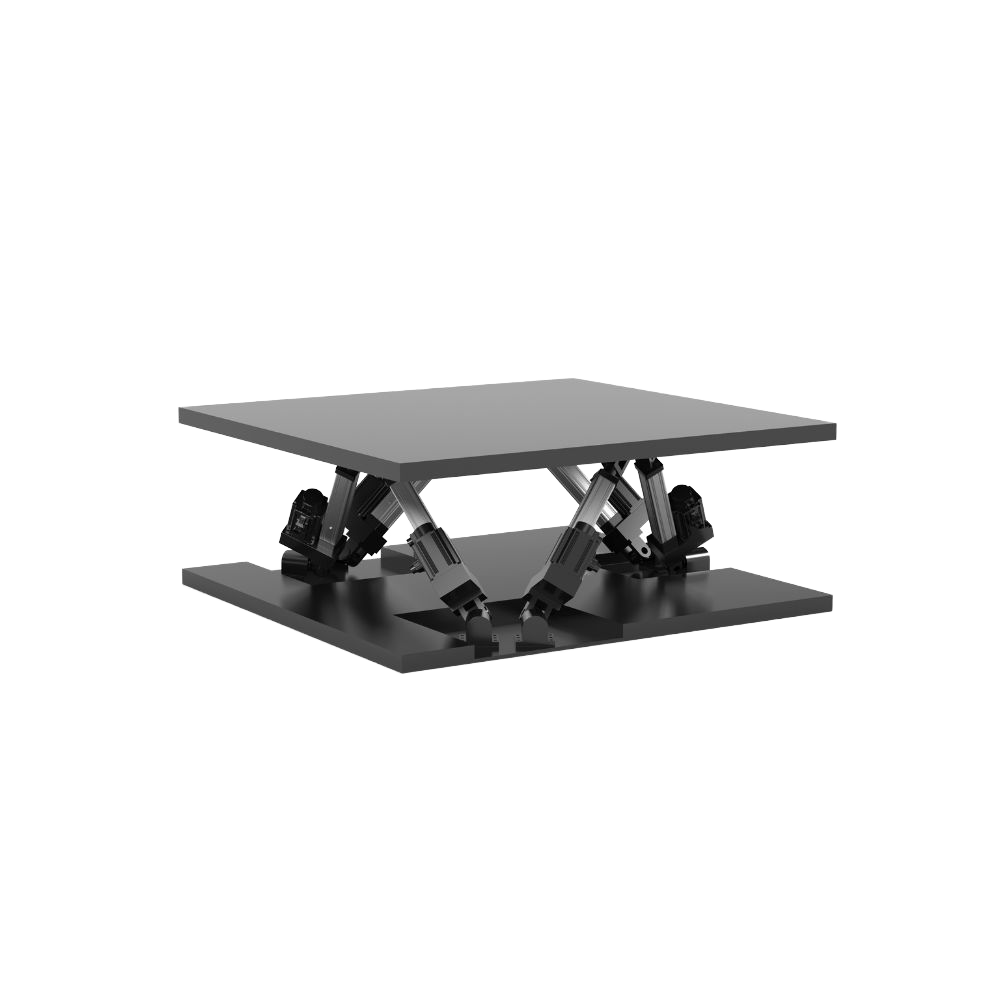

The Six Degrees of Freedom (6DOF) motion platform is a high-performance simulation system designed for realistic spatial movement replication in research, training, and industrial applications. Engineered using the Stewart mechanism, this advanced platform delivers precise three-dimensional translational and rotational motion—ideal for flight simulators, robotics testing, virtual reality environments, and dynamic mechanical validation. With an effective load capacity of 350 kg and a total system weight up to 450 kg, it supports robust operational stability while maintaining agility across all axes.

At the heart of this system are six servo-driven electric cylinders that enable smooth, accurate, and repeatable motion control. Each cylinder features integrated position, speed, and thrust regulation with exceptional precision: positional repeatability within 0.02 mm, velocity accuracy at ±0.5%, and force control reaching 0.05% when paired with a push-pull sensor. These components offer compact design, minimal noise, easy integration with PLCs or industrial computers, and long-term reliability—making them ideal for automation, aerospace engineering, and laboratory environments where consistent performance matters most.

The platform’s motion capabilities include pitch and roll angles of ±14°, vertical displacement of 160 mm, and maximum acceleration of 50°/s² for rapid response scenarios. Speed ranges reach up to ±30° per second, ensuring fluid transitions between postures without abrupt jerks or vibrations—a critical feature for immersive human-in-the-loop systems. The modular structure allows customization based on application-specific needs, whether for vehicle dynamics testing, robotic arm calibration, or educational demonstrations in engineering curricula.

This product is manufactured by Suzhou Johnson Automation Technology Co., Ltd., a company established in 2014 specializing in intelligent motion control solutions. Their expertise lies in developing tailored electric actuators and control systems that rival imported alternatives while offering superior cost-efficiency and local support. By focusing on customer-driven innovation, they ensure each unit meets exacting standards through pre-production prototyping and final inspection before delivery—guaranteeing quality consistency across global markets including Northern Europe, Southeast Asia, North America, the Middle East, and South America.

Common use cases span flight simulator development, driver training systems, vibration analysis equipment, robotic manipulator testing, and academic research in mechatronics. Whether used as part of a larger test rig or deployed independently, this 6DOF platform provides a scalable foundation for experimental setups requiring multi-axis motion fidelity. Its compatibility with various control architectures makes it adaptable for both standalone operation and networked automation systems.

Users praise its seamless integration, quiet operation, and ability to replicate complex real-world movements with minimal latency. Many report improved outcomes in pilot training programs due to enhanced sensory feedback, while engineers highlight the ease of tuning parameters for specific load profiles or environmental conditions. The system's durability under continuous operation and low maintenance requirements further contribute to its popularity among technical professionals seeking reliable, long-term investment.

For those exploring motion simulation technology, questions often arise about setup complexity, compatibility with existing hardware, and expected service life. Installation typically requires basic mechanical knowledge and access to a compatible control interface such as a programmable logic controller or motion controller. With proper handling and periodic lubrication of joints, the system can operate reliably for over 10 years. It supports multiple communication protocols and can be configured to match unique project specifications—from small-scale prototypes to full-scale industrial rigs.
