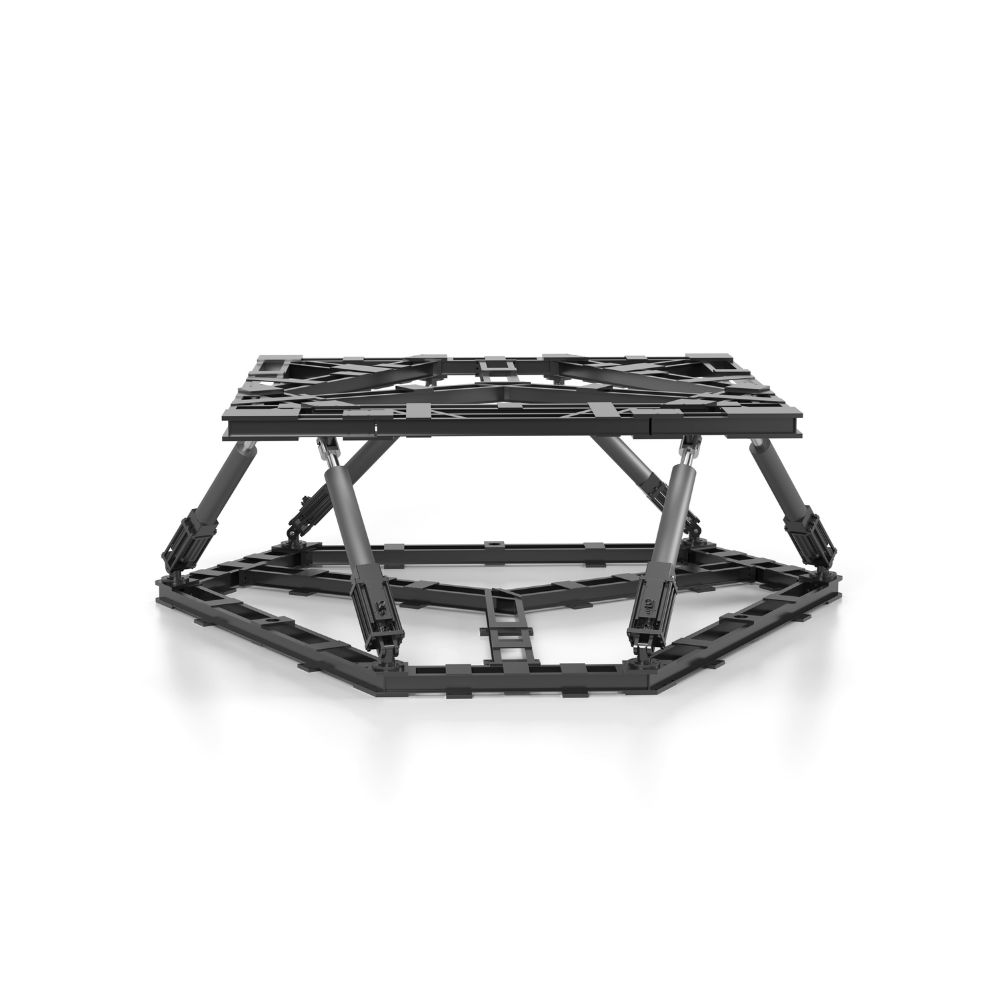

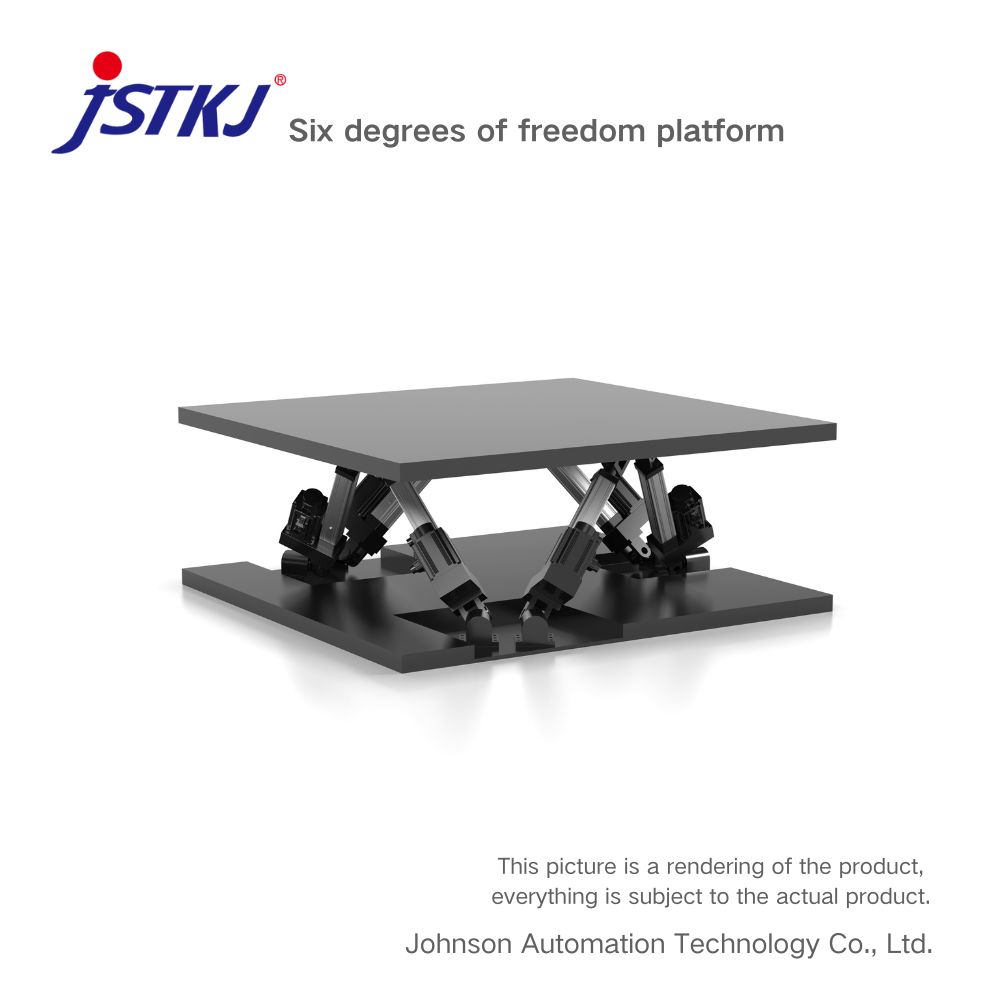

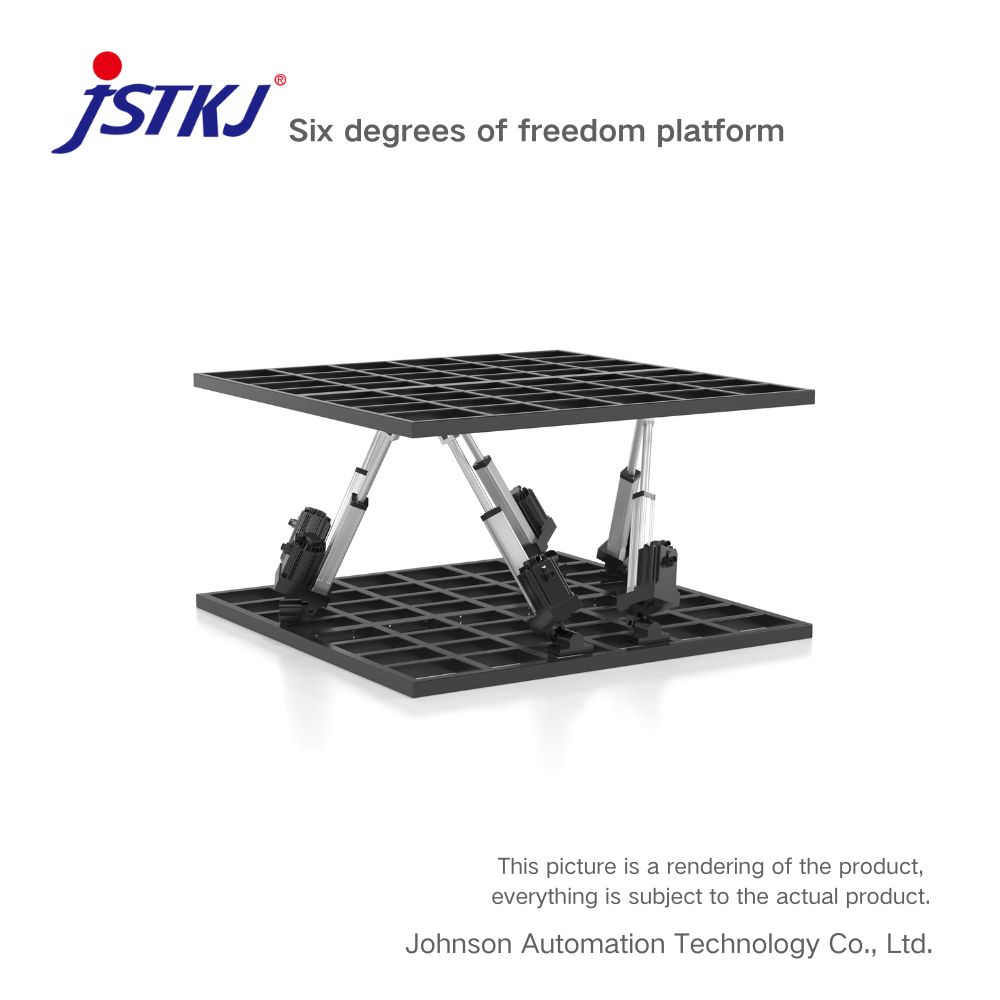

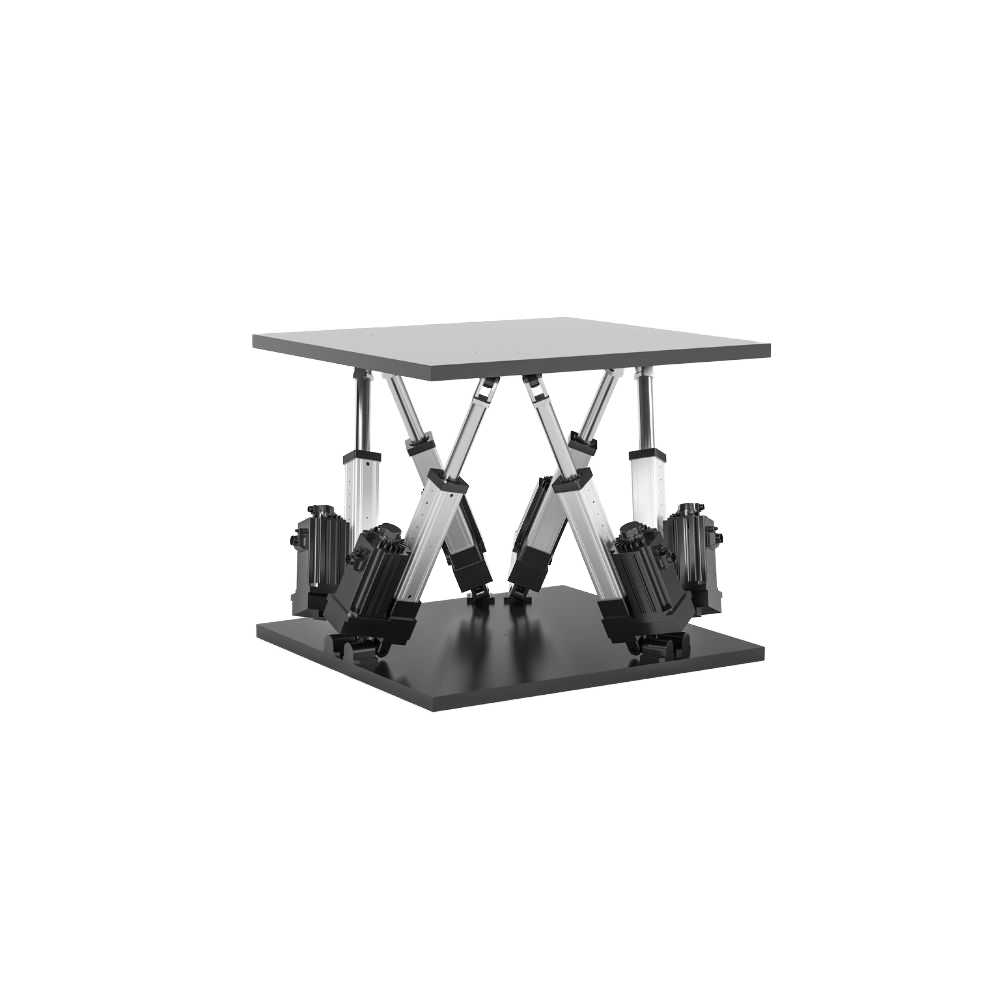

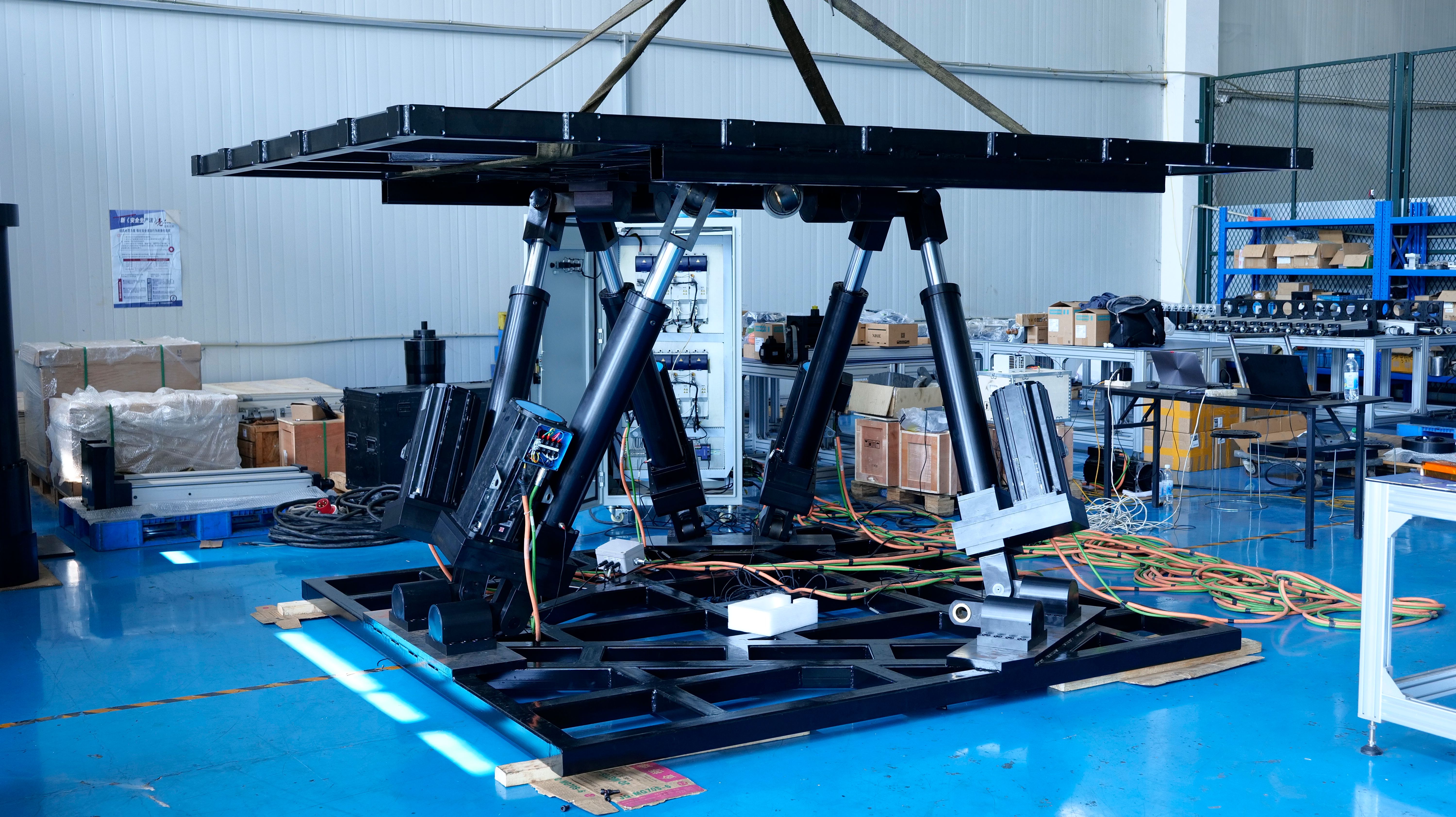

The Six-Degree-of-Freedom Motion Platform: Precision Engineering for Realistic Simulation and Industrial Automation This advanced 6DOF motion platform is engineered to replicate complex spatial movements with exceptional accuracy, making it ideal for flight simulators, robotics training systems, vehicle dynamics testing, and immersive virtual reality environments. Built on a robust Stewart mechanism, the system integrates six servo-driven electric cylinders connected via universal joints to provide full-range translational and rotational motion—three linear displacements along X, Y, Z axes and three angular rotations around pitch, roll, and yaw. Designed for high-performance applications, this platform delivers precise control over posture, speed, acceleration, and response frequency, ensuring lifelike motion simulation in professional settings. Key Features: - High payload capacity (effective load: 1500 kg; total system weight: up to 2000 kg) - Wide motion range: ±12° pitch/roll, ±15° yaw, ±125 mm vertical lift, ±150 mm lateral/longitudinal displacement - Rapid response capability: up to 20 Hz system bandwidth for dynamic motion tracking - Ultra-high precision: position repeatability within 0.02 mm, speed control accuracy at 0.5%, and force regulation accuracy of 0.05% when equipped with push-pull sensors - Compact, low-noise design suitable for integration into industrial automation lines or research labs - Seamless compatibility with PLCs, motion controllers, and custom control software Detailed Description: At the heart of the platform lies a sophisticated
Servo Electric Cylinder system that enables smooth, impact-free movement across all degrees of freedom. Each actuator features a modular structure, easy maintenance, and long-term durability under continuous operation. The control architecture uses real-time pose calculation algorithms to dynamically adjust cylinder lengths, allowing the upper platform to achieve exact positioning in any orientation. With customizable speed profiles and programmable motion sequences, users can simulate everything from gentle aircraft maneuvers to aggressive vehicle suspension tests. The system’s integrated power consumption of just 4.5 kW ensures efficient energy use without compromising performance. Ideal Applications: This versatile motion platform serves multiple industries including aerospace engineering, automotive R&D, military training simulators, medical rehabilitation devices, and educational institutions developing advanced robotics curricula. Whether used as part of a full-flight simulator cockpit, an autonomous vehicle testing rig, or a motion feedback system for VR headsets, the platform provides realistic kinematic behavior critical for effective human-machine interaction studies. User Feedback: Customers worldwide praise the platform's reliability, especially in demanding environments where consistent performance is essential. Many report improved training outcomes in pilot certification programs due to its ability to mimic actual flight conditions accurately. Engineers appreciate the ease of integrating the system into existing test benches and the flexibility offered by tailored parameter adjustments based on specific application needs. Frequently Asked Questions: What makes this 6DOF platform different from others? Unlike traditional hydraulic or pneumatic systems, this electric solution offers higher precision, lower maintenance requirements, and better environmental compatibility—ideal for cleanroom or indoor lab setups. Can it be customized for specific industries? Yes, Suzhou Johnson Automation offers OEM/ODM services to adapt the platform’s parameters—including load capacity, motion range, and interface protocols—to meet unique project specifications. Is it suitable for educational purposes? Absolutely. Its intuitive control interface and clear visualization of motion dynamics make it a powerful teaching tool in university-level mechatronics and control engineering courses.
