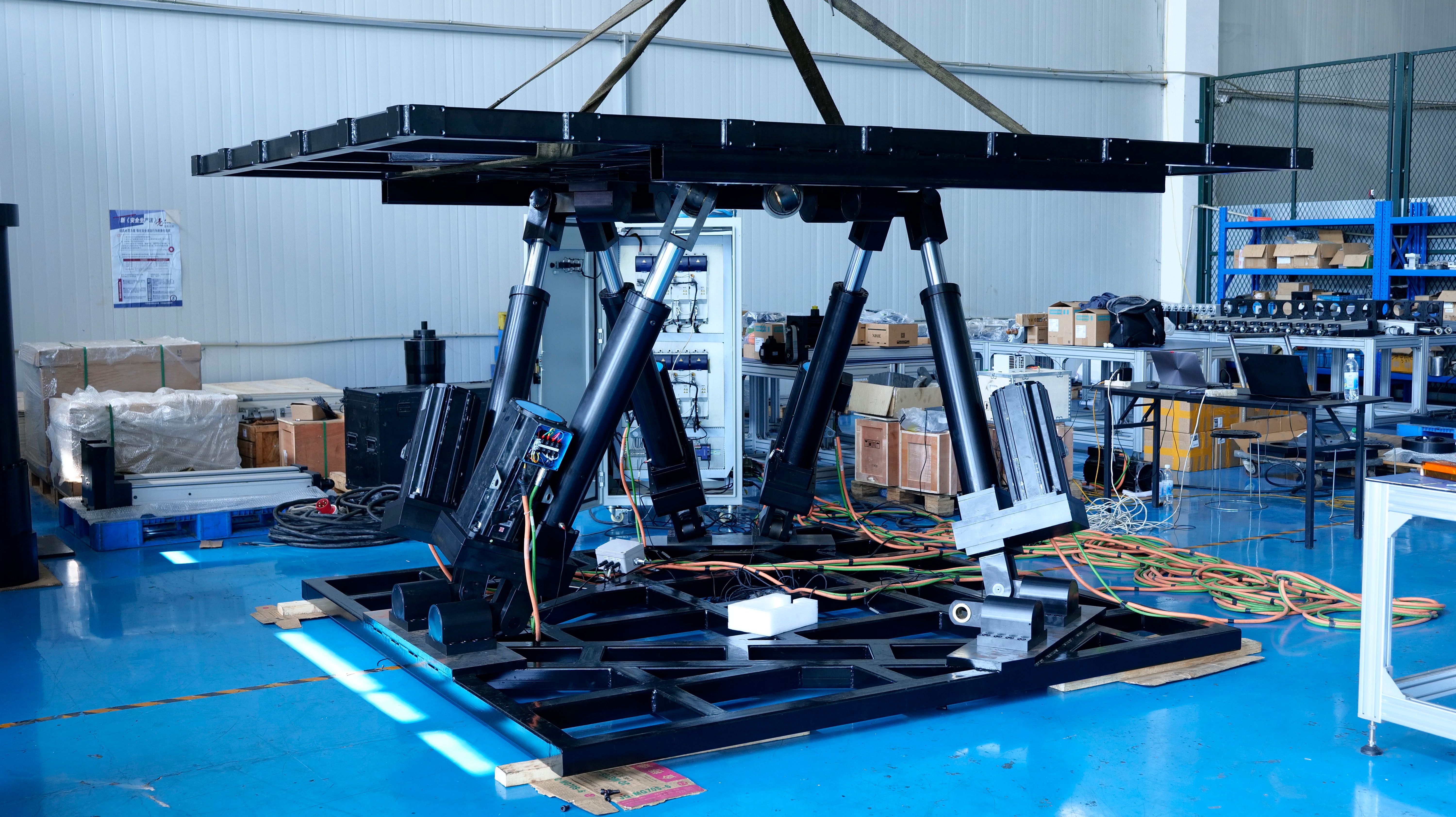

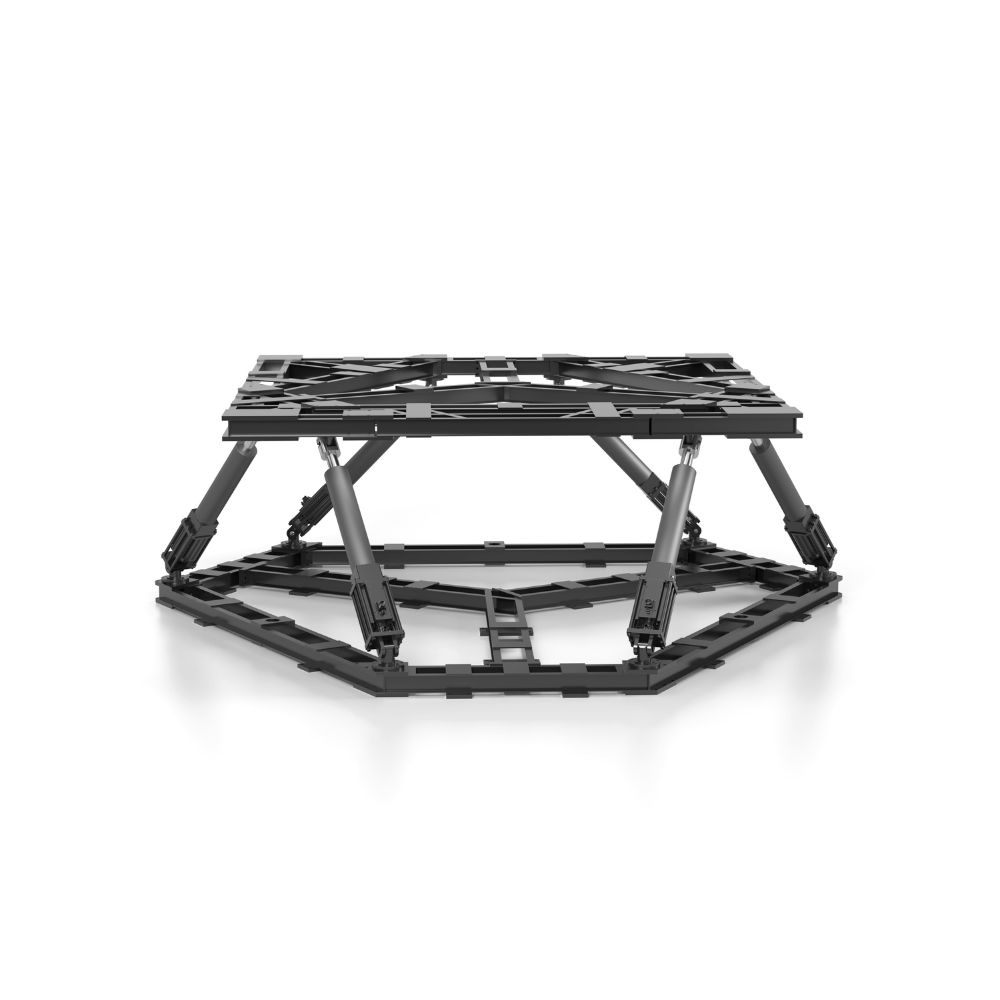

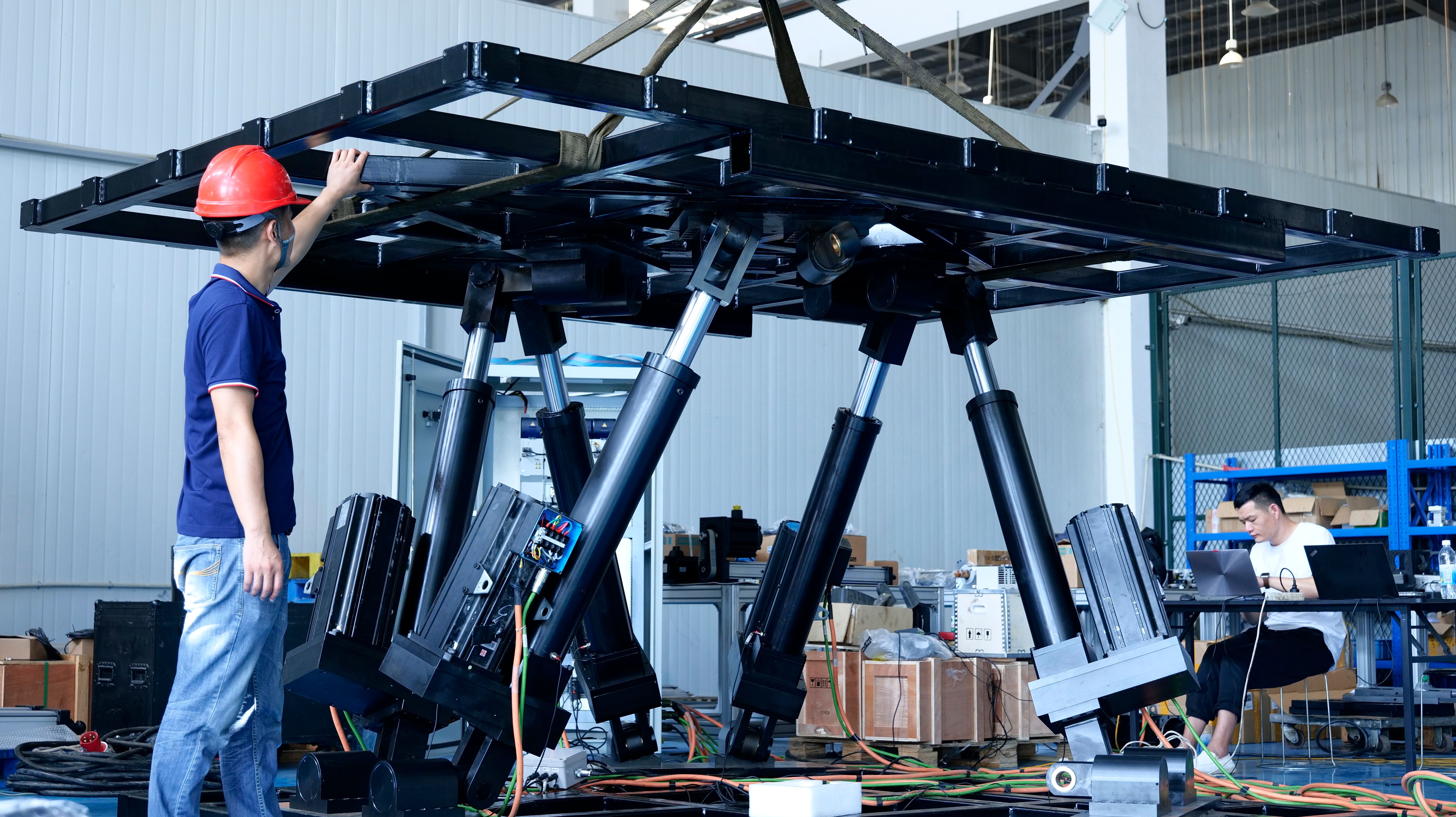

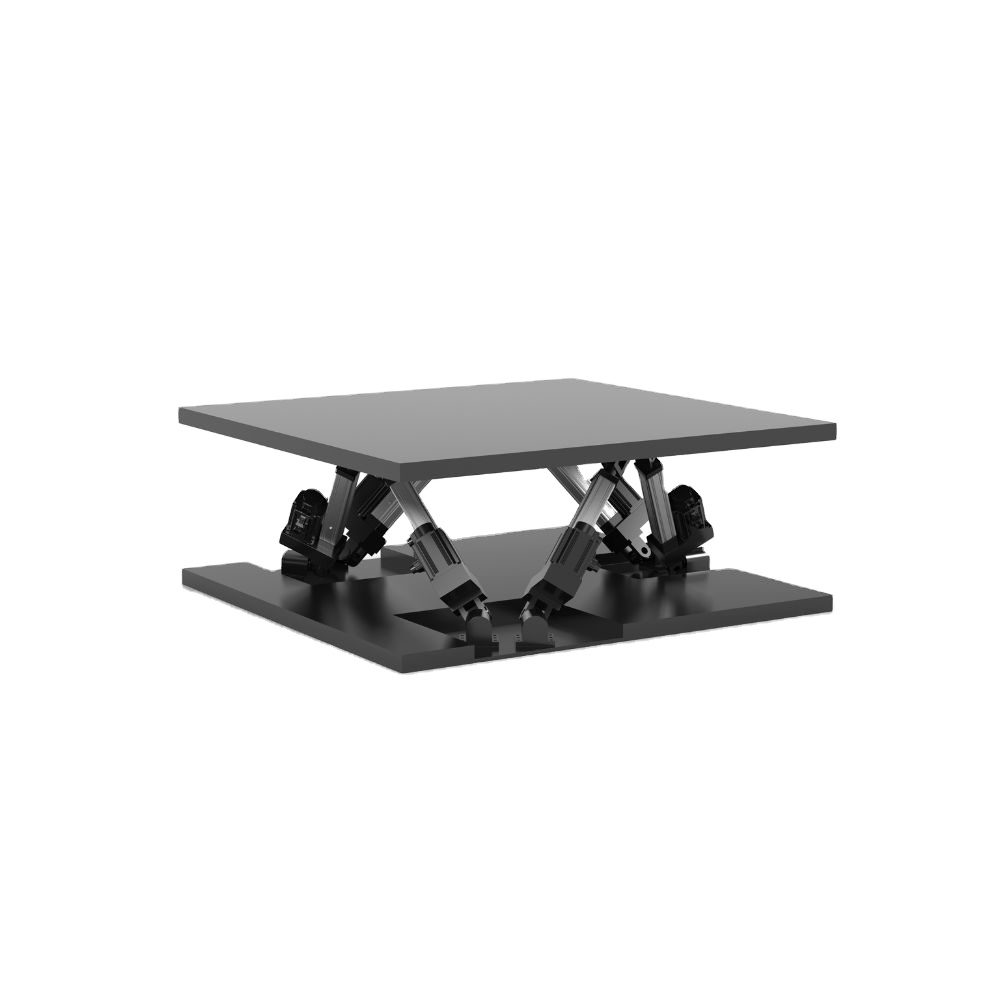

The Six-Degree-of-Freedom Motion Platform: Precision Engineering for Advanced Simulation and Testing This high-performance 6DOF motion platform is engineered to replicate complex spatial movements with exceptional accuracy, making it an ideal solution for flight simulators, vehicle dynamics testing, robotics development, and research applications. Built on a robust Stewart mechanism, this system delivers three translational and three rotational degrees of freedom—enabling precise control over pitch, roll, yaw, vertical lift, longitudinal displacement, and lateral movement. Designed for industrial-grade reliability, the platform supports effective payloads up to 1500 kg and a total load capacity of 2000 kg, including its own structure. Key Features: - High-precision servo electric cylinders ensure repeat positioning accuracy within 0.02 mm - Customizable speed waveforms for smooth, impact-free motion control (accuracy ±0.5%) - Force feedback integration allows thrust control precision up to 0.05% - Wide operational range: ±20° rotation, ±500 mm vertical travel, ±650 mm linear displacement - Rapid response capability from 0.0 Hz to 20 Hz for dynamic simulation scenarios - Integrated compatibility with PLCs, motion controllers, and industrial computers Detailed Description: At the heart of this advanced motion simulator lies a modular design featuring six independently driven electric actuators connected via universal joints (Hooke joints) between the fixed base and the moving platform. Each actuator is powered by a high-torque servo motor controlled by a centralized microcontroller that calculates real-time cylinder lengths based on desired pose coordinates. This closed-loop system enables accurate replication of aircraft maneuvers, seismic vibrations, or autonomous vehicle responses in controlled environments. The platform's structural integrity is reinforced with heavy-duty materials and optimized weight distribution, while its low-noise operation ensures minimal disturbance during prolonged use. With a power consumption of 80 kW, it balances performance efficiency with energy conservation—an essential factor for continuous testing cycles in laboratories and manufacturing facilities worldwide. Ideal Applications: This versatile 6DOF motion platform serves multiple industries requiring realistic motion simulation. Aerospace engineers utilize it for pilot training systems and avionics validation; automotive manufacturers test suspension behavior under extreme conditions; researchers in biomechanics explore human motion patterns using full-body motion platforms; and educational institutions integrate it into engineering curricula for hands-on learning in mechatronics and control theory. Its adaptability makes it suitable for both R&D labs and production environments across Europe, North America, Southeast Asia, and beyond. User Feedback: Users consistently highlight the platform’s responsiveness, ease of integration, and consistent performance over long-term usage. One client from Germany noted, “It significantly improved our virtual reality-based driver training program by adding realistic motion cues.” Another from Canada praised the compact yet powerful design: “We were able to retrofit it into our existing lab space without major modifications—perfect for tight budgets and limited floor area.” Frequently Asked Questions: What distinguishes this platform from other motion simulators? Unlike traditional hydraulic systems, this model uses electric servos offering higher precision, lower maintenance, and cleaner operation—ideal for indoor or sensitive environments. How does the system handle different payload requirements? The platform includes customizable parameters for mass compensation and inertia balancing, allowing seamless adaptation to varying loads without recalibration. Can I integrate this with my existing control software? Yes—it supports standard communication protocols such as EtherCAT, Modbus TCP, and CANopen, ensuring compatibility with most industrial automation setups. Is the system safe for extended use? Safety features include emergency stop functions, overload protection, and redundant sensor feedback loops to prevent unintended motion or mechanical stress. Manufactured by Suzhou Johnson Automation Technology Co., Ltd.—a company founded in 2014 and specializing in smart motion solutions—the platform reflects years of innovation in electric cylinder technology and motion control systems. By focusing on customer-specific customization and localized production, Johnson offers competitive pricing without compromising quality, making this 6DOF motion platform a reliable investment for global clients seeking cutting-edge simulation tools.
